Effective moisture management determines if an exterior stone assembly survives or triggers a catastrophic structural warranty claim. Trapped vapor behind porous stone cladding causes substrate rot, eroding contractor margins and inspector trust through avoidable remediation costs.
This technical breakdown benchmarks installation standards against cement-backed stone panels and thermal expansion resistance tested from -30°C to +50°C. We focus on CNC-diamond precision edging and 4-D drainage strategies to help B2B partners secure durable, high-salinity resistant facades that exceed 2026 building codes.
Why Moisture Management is Critical for Stone Facades?
Unmanaged moisture causes structural rot and mold behind porous stone. Effective facades rely on deflection, drainage, and ventilation to ensure long-term wall assembly integrity.
Understanding the 4-D Strategy for Wall Assembly Protection
Natural stone and mortar joints are inherently porous. They act as a reservoir cladding, absorbing water during rain events. Without a managed escape route, this trapped moisture saturates the underlying sheathing and creates an environment for biological growth.
Modern construction uses the 4-D approach to mitigate these risks and protect the building envelope:
- Deflection: Designing the facade to shed the majority of precipitation away from the stone surface.
- Drainage: Establishing clear drainage cavities that prevent liquid water from reaching the interior wall layers.
- Drying: Creating ventilation pathways that allow air to circulate and evaporate residual humidity behind the stone veneer.
- Durability: Selecting stone materials that withstand frequent wetting and drying cycles without degrading.
Thermal Expansion Resistance and High Salinity Durability
Top Source Stone engineers panel systems to handle specific environmental stresses that often lead to facade failure. Our technical specifications address climate-driven moisture issues through material density and precision engineering.
- Thermal Expansion Resistance: Our panels are tested for extreme temperature fluctuations from -30°C to +50°C, preventing the cracking that occurs during freeze-thaw cycles.
- High Salinity Resistance: Engineered to withstand coastal and tropical environments where salt and humidity accelerate material breakdown.
- Cement-Backed Stability: We use a cement-backed stone panel system to provide a stable substrate that resists delamination even in saturated conditions.
- CNC-Diamond Precision Edging: Our interlocking Z-shape engineering minimizes vertical joints, significantly reducing the points where direct water ingress can occur.
By focusing on these technical parameters, we ensure the stone assembly remains structurally sound and aesthetically consistent over decades of exposure.
What is a Rainscreen System and Do You Need One?
A rainscreen is a multi-layered assembly using a ventilated air cavity to neutralize moisture and air pressure, protecting stone cladding from structural rot and climate-driven failure.
Natural stone and cement-backed stone panels act as reservoir cladding, meaning they absorb and store moisture. Without a dedicated management system, trapped water eventually compromises the building envelope. A rainscreen solves this by separating the stone from the structural wall, creating a path for water to exit and air to circulate.
The Mechanics of a Ventilated Air Cavity
Modern high-performance facades rely on more than just a waterproof barrier. They use physics to move water away from sensitive components. By creating a 3/16″ to 3/8″ gap behind the stone panel, the assembly breaks capillary action and prevents water from being sucked into the substrate by pressure gradients.
- Primary Shielding: Uses natural stone cladding as the first line of defense to deflect bulk rain impact.
- Pressure Equalization: Utilizes the air gap to equalize pressure between the exterior and interior, stopping moisture from migrating inward.
- Passive Evaporation: Facilitates continuous air movement through a top-and-bottom ventilation design to dry residual vapor.
- Gravity Drainage: Directs liquid water down a clear drainage plane to exit through flashing and base-level weep holes.

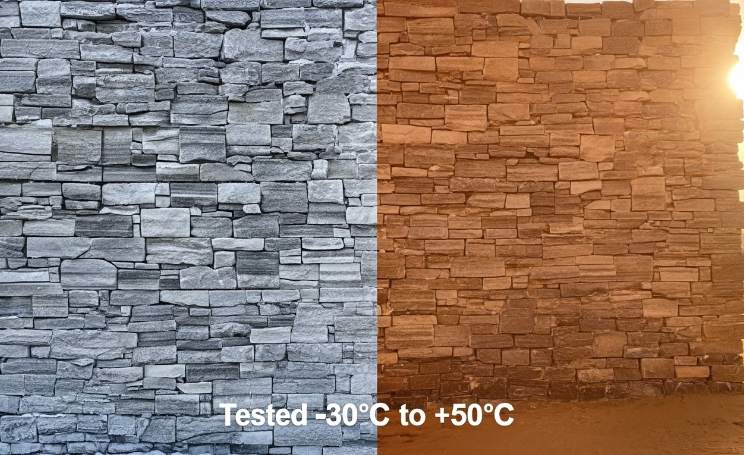

Thermal Expansion Resistance for Stone Facades
Temperature fluctuations can be as destructive as water. For B2B projects in extreme regions, stone panels undergo significant expansion and contraction. Rainscreen systems mitigate these stresses by allowing the building to “breathe” and maintaining the structural integrity of the stone-to-substrate bond.
- Extreme Temperature Tolerance: Protects Top Source Stone panels from severe shifts ranging from -30°C to +50°C.
- Reduced Thermal Bridging: Allows continuous insulation to sit behind the support structure, improving the overall energy rating of the building.
- Substrate Protection: Prevents moisture accumulation behind cement-backed stone panels, ensuring long-term bond integrity and preventing delamination.
- Corrosion Resistance: Provides a critical secondary defense for large-scale developments in high-salinity or high-humidity environments like the Gulf region or coastal North America.
Building codes in many jurisdictions now mandate these systems for manufactured and natural stone applications. For developers and wholesalers, integrating a rainscreen is no longer an optional upgrade but a standard requirement for ensuring the 20-year lifespan of a commercial stone facade.
Premium Stacked Stone for Architectural Projects

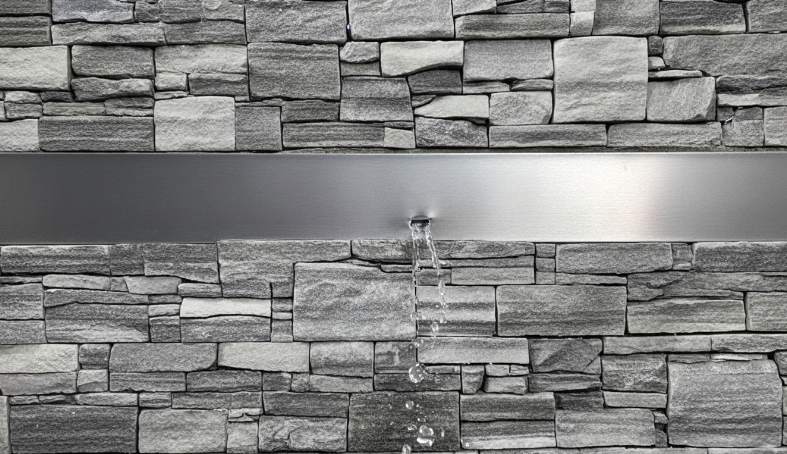

The Role of Weep Holes in Preventing Substrate Rot
Weep holes manage moisture by draining trapped water and providing ventilation, stopping the fungal growth that causes substrate rot and structural failure in stone facades.
Stone veneer is not waterproof. Water eventually finds its way behind the cladding through mortar joints or microscopic cracks. If that moisture stays trapped, it saturates the sheathing and rots the wood framing. Weep holes act as the primary safety valve in a rainscreen system by managing the 4-D approach: deflection, drainage, drying, and durability.
Dual Mechanisms of Drainage and Cavity Ventilation
Modern construction creates tightly sealed building envelopes that often trap humidity. Weep holes solve this by serving two distinct roles that keep the substrate dry and the structure intact.
- Moisture Extraction: Gravity pulls water that penetrates the facade down the cavity, where weep holes guide it safely to the exterior.
- Air Circulation: These openings allow continuous airflow within the wall cavity, which evaporates residual moisture and prevents condensation.
- Mold Prevention: By eliminating damp, stagnant air, these mechanisms inhibit the growth of mold and mildew that eat away at structural wall components.
Sustaining Cement-Backed Panels in High-Salinity Zones
In coastal or high-humidity regions like the Gulf, drainage is essential for maintaining the chemical and mechanical bond of the panel system. Top Source Stone cement-backed panels are engineered for high salinity resistance, but they rely on proper cavity ventilation to perform long-term.
- Epoxy Bond Integrity: Keeping the panel cavity dry preserves the high-strength epoxy bond between the natural stone and the cement base.
- Salt-Water Management: Rapid drainage prevents salt-water entrapment, which is the primary cause of efflorescence and white salt staining on exterior stone walls.
- Thermal Resilience: Combining stainless steel protective covers with thermal expansion-resistant stone ensures the substrate remains protected during the extreme temperature fluctuations typical in 2026 architectural projects.
Failure to maintain these openings often leads to hydrostatic pressure building against the weather-resistant barrier. For large-scale B2B projects, ensuring weep holes remain unobstructed is a non-negotiable step for protecting the building envelope and the investor’s margin.
Liquid Membranes vs. House Wrap: Choosing the Right WRB
Liquid membranes create a seamless, monolithic bond essential for heavy stone panels, while house wraps offer a faster, budget-friendly alternative for standard flat-wall applications.
| Performance Factor | Liquid-Applied Membranes | Traditional House Wraps |
|---|---|---|
| Sealing Method | Monolithic, seamless bond | Mechanical fasteners and tape |
| Weight Support | Ideal for 68-80kg/Sq.m panels | Limited; risk of tearing |
| Thermal Range | Resilient from -30°C to +50°C | Fasteners can loosen over time |
| Installation Speed | Slower; requires skilled labor | Fast and cost-effective |
Comparing Mechanical Fastening and Monolithic Sealing
Weather-resistive barriers (WRB) function differently depending on their physical structure and how they attach to the building envelope. House wraps and liquid membranes represent two distinct philosophies in moisture protection.
- Attachment: House wraps use High-Density Polyethylene (HDPE) fibers and mechanical fasteners, which require meticulous taping at every joint to stop air and water infiltration.
- Seamlessness: Liquid barriers cure into a seamless layer that bonds directly to the substrate, removing the gaps typically found at penetrations.
- Permeability: Most house wraps meet the 5-perm minimum standard, but liquid membranes offer variable ratings to match specific masonry requirements.
- Geometry: Liquid systems adapt easily to irregular surfaces and corners common in complex stone architectural designs where sheets often fail.
WRB Performance for Thermal Expansion and Stone Weights
The technical demands of natural stone panel systems, especially cement-backed varieties, necessitate a stable and flexible protection layer that handles both physical load and environmental stress.
- Thermal Movement: Top Source Stone panels handle extreme shifts from -30°C to +50°C, making flexible liquid membranes a more resilient choice for climates with high thermal movement.
- Load Stability: The heavy profile of cement-backed stone (68-80kg/Sq.m) requires a substrate protection layer that will not shift, sag, or tear under long-term dead loads.
- Environmental Resistance: Liquid membranes provide high salinity and humidity resistance, which complements the UV stability of slate and quartzite in coastal or desert environments.
- Maintenance: Standard house wraps reduce initial investment costs for 2026 residential projects but may require more frequent maintenance at fastener points when placed under heavy cladding.
How to Prevent White Salt Stains (Efflorescence) on Wet Walls?
Stop efflorescence by blocking moisture ingress with proper flashing and weeps, and selecting high-density Top Source Stone panels treated with siloxane-based sealants.
Efflorescence happens when soluble salts travel to the stone surface through water evaporation. In 2026, the industry standard focuses on eliminating moisture ingress through mechanical drainage and chemical barriers. Professional installers must address the root cause: water moving through the substrate.
Moisture Management and Capillary Breaks
Natural stone is inherently porous. Without a clear exit path, water stays trapped behind the veneer, leaching salts from the mortar or substrate. Effective prevention requires a physical break in the water’s path.
- Flashing and Weep Holes: Install metal flashing and keep weep holes clear to ensure water exits the substrate without saturating the stone.
- Capillary Breaks: Use polyethylene sheeting between soil and building materials to stop ground salts from migrating upward.
- Drainage Pitch: Direct water away from wall tops and horizontal surfaces to prevent stone saturation during heavy rain.
- Joint Compaction: Fill mortar joints completely and tool them firmly to close porous pathways that facilitate salt travel.
Applying Hydrophobic Sealants to Salinity-Resistant Stone
Material selection dictates how a facade handles environmental stress. High-density stones like quartzite or slate offer better resistance to salt-heavy air in coastal or desert regions. Combining the right material with chemical protection creates a dual-layer defense.
- Panel Selection: Specify Top Source Stone Z-panels, which are batch-tested for high salinity and humidity resistance.
- Siloxane Sealants: Apply siloxane-based hydrophobic sealants to prevent internal water travel while remaining vapor permeable.
- Application Timing: Wait for any existing efflorescence to stop completely before applying acrylic coatings or water repellents to avoid trapping salts.
- Low-Alkali Mortar: Use low-alkali Portland cement to minimize the total volume of water-soluble salts available within the wall assembly.
Using CNC-diamond precision edging on stone panels helps ensure a tighter fit, which naturally reduces the surface area available for moisture penetration. These technical details, paired with high-performance sealers, protect the architectural finish for the long term.
Frequently Asked Questions
Does water penetrate behind stone veneer panels?
Yes. Stone panels function as reservoir cladding, which means the material absorbs and stores moisture. Water enters through mortar joints, micro-cracks, or by soaking through the porous stone. Without a drainage plane, this moisture stays trapped against the substrate, causing mold or structural rot. We see this failure most often in direct-applied installations that lack a managed air gap.
Is a rainscreen mandatory for stacked stone installations in 2026?
Building code requirements vary by jurisdiction, so you must check local 2026 mandates. Even if your region doesn’t legally require it, Top Source Stone and other industry leaders strongly recommend a rainscreen with at least a 3/16 inch air gap. This setup creates a capillary break that allows moisture to drain and the wall assembly to dry through natural ventilation.
How can I prevent mold growth behind stone cladding?
To prevent mold, you must avoid “dot and dab” installation. That method creates hollow cavities that trap moisture. Use the back-buttering technique to ensure full mortar coverage on every stone panel. You should also install a drainage mat or entangled mesh behind the panels to maintain air circulation and provide water a clear exit path.
What are weep holes and why are they necessary?
Weep holes are small openings in the mortar joints located at the base of the wall or above windows. They perform two roles: letting gravity-fed water escape the wall cavity and allowing air to circulate behind the stone. This airflow is essential for keeping the substrate dry and preventing rot in the underlying wood framing.
Are cement-backed stone panels waterproof?
Natural stone is water-resistant, but the panel system itself does not act as a waterproof barrier. For exterior applications, you need a full moisture management strategy. This includes using a high-quality weather-resistant barrier (WRB) and applying a breathable, penetrating sealer to minimize water absorption without trapping vapor inside the wall.
