How to Install Natural Thin Stone Veneer: A Step-by-Step Guide

Mastering installation basics serves as the primary defense against structural delamination and the long-term liability of moisture-related failures in commercial masonry. When crews overlook the physics of stone adhesion or water management, they invite water intrusion that destroys the substrate and triggers expensive warranty callbacks or litigation. High-quality stone masonry depends on a precise sequence of technical layers that protect the building envelope and ensure the veneer remains permanently bonded to the structure.

This guide outlines a repeatable standard operating procedure for successful stone application, starting with substrate preparation and the correct use of vapor barriers. We detail the mechanical bond created by metal lath and scratch coats before moving into the specific ratios for polymer-modified mortars and the back-buttering process. These steps provide the technical framework required for applying individual stones and finishing joints to meet professional architectural standards.

Preparing the Substrate and Installing Vapor Barriers

Substrate integrity determines the lifespan of natural stone cladding; even the highest-grade quartzite fails if moisture migrates behind the bond line or the substrate deflects under load.

Effective installation begins with a clinical approach to the wall surface. We remove all contaminants, including dust, form release agents, or loose particles, which act as bond-breakers. In 2026, industry protocols mandate moisture testing on all concrete and masonry substrates to verify they meet established safety thresholds before we apply any weather-resistant barriers.

• Clean all substrates thoroughly to eliminate debris that interferes with the mechanical bond of the mortar.
• Execute moisture probes on masonry surfaces to ensure compliance with modern structural safety standards.
• Patch and level structural cracks or surface irregularities to establish a perfectly flat plane for the sawn-back stone.

Vapor Barrier Application and Seam Overlaps

Managing water requires more than just a single layer of protection. High-performance membranes must be installed with a minimum 6-inch overlap at all vertical and horizontal seams. This creates a continuous drainage plane that prevents water from reaching the sheathing, particularly in regions prone to heavy freeze-thaw cycles.

• Maintain a strict 6-inch overlap at all membrane junctions to ensure a fail-safe moisture shield.
• Seal all edges using multi-stage techniques, combining specialized flashing tapes and industrial mastic.
• Select high-density membranes that resist puncture and tearing during the stone handling process.

Vertical Terminations and Penetration Sealing

Vulnerabilities often occur at wall-to-floor transitions and utility entries. We extend the vapor barrier at least 6 to 12 inches up vertical wall sections to block water infiltration at the base. Every pipe, electrical conduit, and utility penetration requires mechanical fasteners and liquid-applied flashing to create an airtight, watertight seal.

• Carry the barrier 6-12 inches up vertical transitions to prevent wicking at the wall base.
• Apply liquid flashing around all wall penetrations for a seamless, tight fit.
• Align all termination points with the drainage plane so moisture exits the system at the weep screed.

Substrate Requirements for Stone Ledger Panels

Natural stone veneer imposes a significant load—typically 8-13 lbs per square foot. Standard drywall cannot support this weight directly because the paper facing lacks the shear strength to hold the mortar bond. For interior projects, we install cement backer boards over the drywall, securing them directly to the studs to provide the necessary rigidity.

• Overlay interior drywall with cement backer boards to manage the 65kg/m² weight of the stone.
• Verify that brick or CMU substrates are free of paint and sealers before application.
• Confirm the substrate can support our random-size loose stones without any structural deflection.

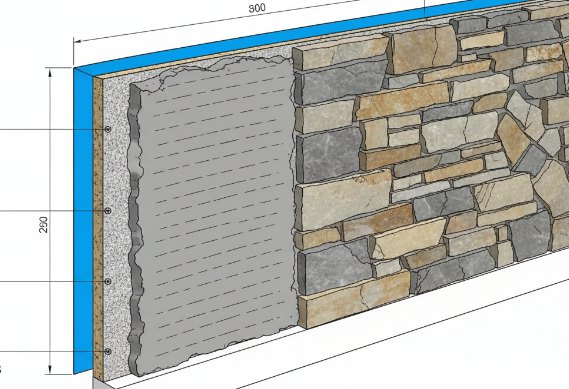

Applying the Metal Lath and the Crucial Scratch Coat

A precision-installed metal lath and scratch coat provide the structural skeleton and mechanical bond required to support the 8-13 lbs per square foot weight of natural stone veneer.

Installing the Metal Lath Correctly

Proper lath orientation determines the success of the mortar bond. We position the galvanized lath with the rough “cups” facing upward and outward. This specific orientation allows the mortar to settle into the mesh, creating a mechanical key that locks the scratch coat to the substrate. On-site teams must feel the texture; if the lath feels smooth when running a hand downward, it is installed correctly to catch and hold the wet mortar mix.

Fastening standards require galvanized nails or staples driven into the wall studs. We space these fasteners every six inches vertically to handle the significant load of the loose stone. For corners, we wrap the lath at least 16 inches around the bend to provide a seamless base for our “Authentic Masonry Corner Wraps,” ensuring the corner stones do not pull away from the structure over time.

Preparing the Type S Mortar Mix

The scratch coat demands high-tensile bond strength, making Type S mortar the professional choice. We mix a ratio of two parts washed sand to one part masonry cement. The goal is a “creamy” consistency—similar to whipped potatoes—that holds its shape on a trowel without sliding. Using polymer-modified Type S mortar increases flexibility, which is vital for exterior applications where temperature fluctuations cause the substrate to expand and contract.

• Mix the mortar for at least five minutes to ensure uniform distribution of the binding agents.
• Maintain the 2:1 ratio strictly; too much sand weakens the bond, while too much cement leads to shrinkage cracks.
• Prepare only the amount of mortar usable within 60 minutes to prevent premature drying.

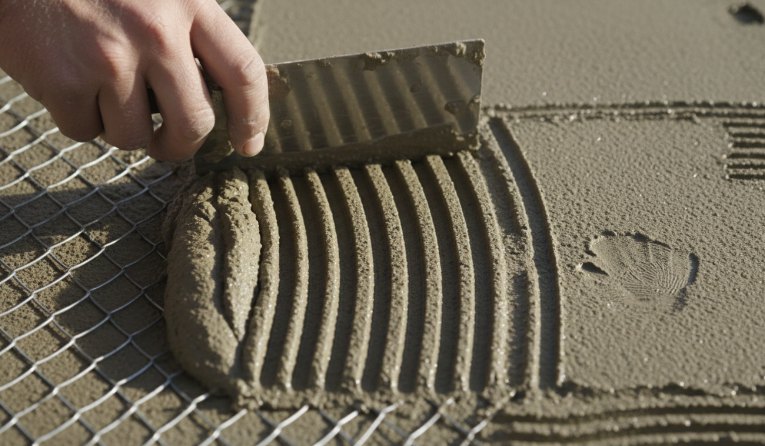

Applying and Texturing the Scratch Coat

We trowel the mortar firmly into the metal lath, applying a layer between 1/2 and 3/4 inch thick. Firm pressure is mandatory to fully encapsulate the metal mesh and eliminate air gaps. Once the mortar reaches “thumbprint hardness”—meaning it is firm but still receptive to impression—we use a notched trowel or a scratch rake to create horizontal grooves across the surface. These grooves increase the surface area for the final adhesive layer, creating the high-friction environment needed for a bespoke random-lay pattern.

Allowing the scratch coat to cure for 24 to 48 hours is a non-negotiable step in the 2026 installation standards. This curing period ensures the substrate reaches its maximum load-bearing capacity before we apply the sawn-back stones. In warm climates, we lightly mist the scratch coat with water during the cure to prevent rapid moisture loss, which can compromise the chemical bond of the masonry cement.

Premium Stacked Stone for Architectural Excellence

Our factory-direct ledger panels reduce installation costs and labor time while providing the unmatched durability of 100% natural quarried stone. Scale your business with a reliable global manufacturer offering precision-cut quality and consistent inventory.

Request Your Wholesale Quote →

Mixing the Perfect Polymer-Modified Mortar Ratio

Precision in the mortar-to-water ratio directly dictates the shear strength and long-term adhesion of high-density natural stone veneers in fluctuating climates.

Standard water-to-powder ratios provided by manufacturers serve as a baseline, but site-specific variables in 2026 require onsite adjustments to ensure a high-performance bond. Temperature and humidity fluctuate, so we prioritize the “feel” of the mix over rigid measurements alone. A successful mix must support the weight of individual ledger stones—which typically range from 8 to 13 lbs/sqft—without allowing the stone to sag or slip once placed against the scratch coat.

Adjusting Water Ratios for 2026 Site Conditions

Environmental factors determine how the mortar performs during the open-time window. In high-humidity environments, we reduce the initial water volume slightly to maintain necessary tackiness and prevent the mix from becoming overly fluid. We always add the powder to the water rather than pouring water into a pile of powder. This method prevents dry clumps from forming at the bottom of the bucket and ensures a smooth, peanut butter-like consistency throughout the batch.

• Start with 90% of the recommended water and gradually add the remaining 10% to hit the target viscosity.
• Maintain a heavy-bodied consistency that allows a notched trowel ridge to stand without collapsing.
• Verify that the mix provides 100% transfer to the back of the sawn-back stone during a test pull.

The Slaking Process and Chemical Activation

Skipping the slaking process is a primary cause of bond failure in polymer-modified systems. This mandatory rest period allows the high-strength polymers and specialized chemicals to fully hydrate and activate. Without this 5 to 10-minute pause, the mortar may feel workable but will lack the crystalline structure required for a permanent mechanical and chemical bond.

After the slaking period, we remix the batch briefly to break down any remaining microscopic lumps. We never add more water during this second mix. Adding water to mortar that has already begun its chemical set—a practice known as re-tempering—weakens the final bond integrity and can lead to stone delamination as the material cures.

Mechanical Mixing Standards for Bond Integrity

Consistent polymer distribution requires mechanical force, but speed control is vital. We use a low-speed drill operating under 300 RPM paired with a square-end mixing paddle. High-speed mixing traps air within the mortar bed, creating weak voids that reduce the effective contact area between the stone and the substrate.

• Mix until the color is perfectly uniform, especially when using tinted mortars for dark slate or arctic white quartzite.
• Monitor the pot life of the batch, which usually lasts 30 to 60 minutes depending on current 2026 climate trends.
• Discard any mortar that has developed a surface skin or has begun to stiffen in the bucket.

“Buttering” the Back of the Thin Stone Veneer

Full-surface mortar coverage is the critical factor in preventing moisture-related delamination and ensuring a permanent mechanical bond with the scratch coat.

Achieving Full Mortar Coverage for Bond Integrity

Current 2026 industry standards emphasize a 100% mortar bond to prevent hollow spots and moisture penetration. Unlike older masonry techniques that allowed for “spot dabbing,” modern high-performance installations require the mortar to act as a continuous structural layer. By applying mortar across the entire back surface, you eliminate the air pockets that can trap water, which leads to freeze-thaw damage in colder climates.

• Apply a consistent layer of mortar across the entire back surface of each individual loose stone.
• Avoid “spot dabbing” or ring patterns that create air pockets and weaken the structural installation.
• Ensure the mortar makes full contact with the edges of the sawn-back surface to secure a seamless fit against adjacent stones.

Maintaining Optimal Mortar Thickness and Consistency

Precise thickness control ensures the stone veneer remains level and remains securely attached to the substrate during the curing phase. We recommend maintaining a thickness of approximately 1/2 inch. This volume provides enough material to compress into the scratch coat while remaining light enough to prevent the stone from “sagging” or sliding down the wall before the initial set occurs.

• Maintain a mortar thickness of approximately 1/2 inch to allow for proper compression during setting.
• Use polymer-modified Type S mortar specifically formulated for high-density natural stone like quartzite or granite.
• Verify that the mortar consistency is creamy—similar to whipped potatoes—so it spreads easily yet holds its shape on the trowel.

Setting Techniques for Maximum Suction and Adhesion

The physical action of pressing the stone into the scratch coat determines the long-term success of the veneer. Professional installers use a “wiggle” technique to break the surface tension of the mortar and the scratch coat, which creates the vacuum suction necessary for a gravity-defying bond. This is particularly important for larger stones that carry more weight.

• Press the buttered stone firmly against the prepared substrate using a slight back-and-forth wiggling motion to collapse any ridges.
• Check for mortar squeeze-out around the edges, which confirms the stone has reached 100% contact with the scratch coat.
• Apply steady, even pressure to engage the suction required for a permanent bond, especially on vertical surfaces.

Adhesive Considerations for Natural Stone

Different natural stones, such as dense quartzite or porous sandstone, interact with mortar differently. For the 2026 market, we prioritize bonding-agent-enhanced mortars that provide the flexural strength needed to withstand temperature fluctuations. Utilizing high-performance additives ensures that the natural variations in the stone’s mineral composition do not lead to delamination over time.

• Utilize high-strength polymer-modified mortars for high-density quartzite to ensure stones remain bonded to the substrate.
• Select adhesives that meet modern environmental standards, offering UV resistance and stability during extreme freeze-thaw cycles.
• Confirm that the mortar is compatible with both the natural stone and the specific substrate, whether it is masonry, cement board, or a prepared scratch coat.

Applying the Stones and Grouting the Joints Professionally

Achieving a professional-grade finish requires strict adherence to stone orientation and joint compression to ensure both structural visual integrity and long-term moisture resistance.

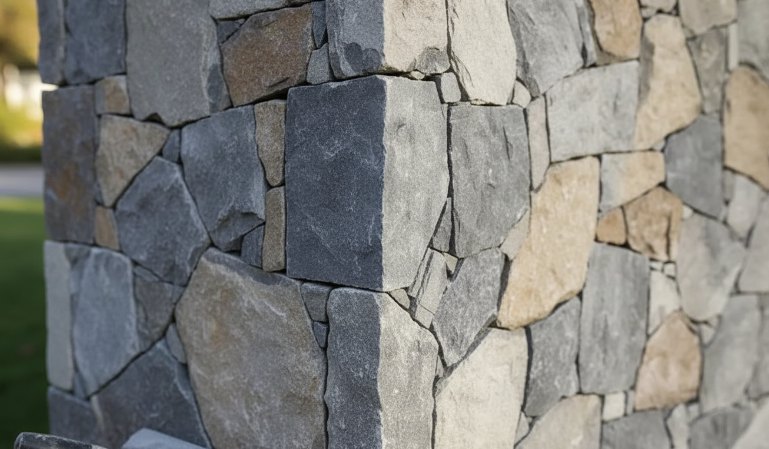

Effective installation begins with the placement of matching L-shaped corners. We utilize an “Authentic Masonry Corner Wrap” technique to create the appearance of full-depth structural blocks. Installers start from the bottom corner and work upward, alternating the long and short returns of the corner pieces. This method eliminates vertical seam lines and provides the “Full-Depth Visual Integrity” that distinguishes premium natural stone from thin imitations. Because Top Source Stone products feature an individually sawn-back finish, the pieces sit flush against the scratch coat, which reduces the need for excessive shimming and saves significant on-site labor.

Executing the Bespoke Random-Lay Pattern

Contractors must maintain a bespoke random-lay pattern by selecting stones from multiple crates simultaneously. This prevents “color pooling” and ensures the quarry-to-project consistency expected in high-end B2B applications. Unlike modular panels, these loose stones allow for tight, organic fits. We check for level every two to three courses to maintain architectural symmetry, even when working with irregular shapes. Installers press each stone firmly into the mortar bed with a slight wiggling motion to collapse ridges and ensure 100% bond coverage.

Selecting Grout and Mortar Based on Stone Porosity

Selecting the chemical composition for joints is critical to prevent staining. For high-density quartzite and marble, we specify pH-neutral, polymer-modified mortars to avoid adverse mineral reactions. If the design calls for wide joints, sanded grout provides the necessary structural body to prevent shrinkage cracks. For “dry-stack” aesthetics, installers omit grout but must ensure the substrate is fully sealed and blackened. This prevents the backer board from showing through the tight gaps of the natural stone walling.

Executing Grout Application and Joint Striking

Installers fill the cavities using a grout bag, ensuring the material reaches the full depth of the stone edges. We avoid the “donut” pattern, as it creates air pockets that trap moisture. The “striking” process begins once the mortar reaches thumb-print hardness.

• Use a metal jointing tool to compress the mortar into the joint, increasing the density and weatherproofing of the seal.
• Apply grout at a 45-degree angle if using a rubber float on smoother surfaces to ensure complete cavity filling.
• Finish the joint with a dry, soft-bristled brush to remove loose particles without smearing the stone face.

Final Cleaning and Protective Sealing Protocols

Post-installation care preserves the Zero-Repeat Natural Variation of the minerals. Contractors remove grout haze within the first 30 minutes using clean water and a soft brush. We strictly avoid acidic cleaners, as they etch natural limestone and sandstone. Once the mortar cures fully—typically after 28 days—we apply a high-quality, breathable natural stone sealer. This treatment allows moisture vapor to escape from the substrate while protecting the exterior from UV-induced fading and water penetration. Standard maintenance for 2026 projects involves periodic inspections of the joints to ensure the climate-tested durability of the system remains intact.

Conclusion

Properly installing natural thin stone veneer relies on precise substrate preparation and consistent mortar application to ensure a long-lasting bond. Using individually sawn-back stones simplifies the layout process and allows for an authentic, bespoke finish that replicates traditional full-depth masonry. Following these technical standards helps maintain structural integrity and achieves the high-density quartzite durability required for diverse climates.

Review your current project specifications to determine the volume of loose stone and matching corners needed for your next installation. Contact Top Source Stone to discuss wholesale requirements or to request a technical catalog tailored for B2B procurement.
