How Thick is Thin Stone Veneer? Weight and Structural Specs

Understanding the weight & thickness of stone materials determines whether a commercial project meets local building codes or faces a structural failure during inspection. Architects and engineers must track these specs precisely to avoid the high costs of adding foundation ledges or reinforcing load-bearing walls for materials that exceed standard safety limits. If the material surpasses the 15-pound-per-square-foot threshold, it stops being a lightweight veneer and becomes a structural liability that requires specialized support systems.

This guide analyzes the dimensional standards and load-bearing requirements for real thin stone veneer to ensure accurate project planning. We break down the specific weight limits that separate thin veneer from full-bed stone and explain why these measurements eliminate the need for traditional foundation ledges. Use the following data to calculate exterior facade loads and compare material profiles against your structural requirements.

Defining the Dimensions of Real Thin Stone Veneer

Natural thin stone veneer provides the authentic texture of full-depth masonry within a slim profile that meets strict building codes for adhered veneer applications.

Standard thickness for natural thin stone veneer typically ranges between 0.75 and 1.25 inches. At Top Source Stone, we strictly maintain a thickness of 25–40mm (approximately 1 to 1.5 inches) across our product lines, including high-density quartzite and granite. This specific range allows for enough depth to showcase natural clefts and shadow lines while remaining light enough for vertical adhesion. We utilize precision-cutting equipment to ensure every piece features a 100% sawn-back finish. This flat bonding surface maximizes contact with the substrate, which reduces the amount of mortar required and cuts on-site labor costs by nearly 30% compared to irregular-backed stone.

• Standard loose stone thickness remains consistent between 25mm and 40mm for predictable installation.
• Precision-sawn backs provide a flat surface that ensures superior bond strength with modern thin-set mortars.
• Specific series, such as our Rustic Irregular line, offer varied surface depths to create dramatic, organic textures without increasing the dead load.

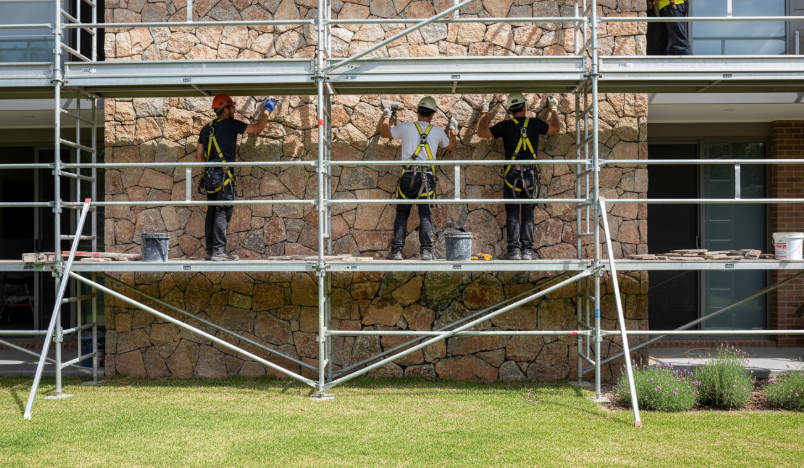

Weight Specifications and Building Code Compliance

Building codes, including the Uniform Building Code (UBC), dictate that any stone applied as an adhered veneer must weigh less than 15 lbs per square foot. Our natural thin stone averages approximately 13 to 14 lbs per square foot (65kg/m²), comfortably meeting these safety standards. This lightweight profile allows architects and contractors to specify real stone for projects where a full-depth 40-60 lb stone would require massive structural reinforcements or specialized steel lintels.

• Adhering to the 15 lbs/sq ft limit enables installation on standard cement backer boards or CMU walls.
• Lightweight stone reduces the overall dead load of the facade, allowing for taller installations on framed exterior walls.
• The reduced weight facilitates safer handling for masons, speeding up the project timeline and reducing liability on high-elevation work.

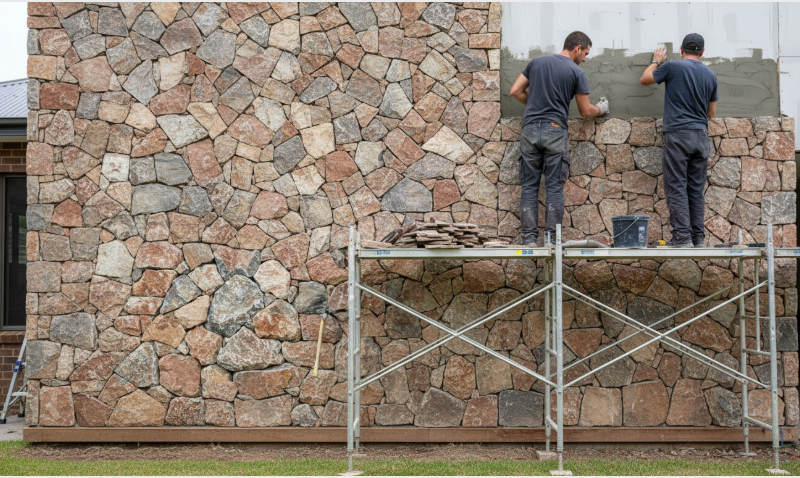

Individual Piece Formats and Authentic Masonry Corner Wrap

We provide loose stone in a bespoke random-lay format rather than pre-glued panels. This approach prevents the repetitive, “grid-like” appearance of factory-assembled units and allows for a truly unique aesthetic on every wall. Standard piece dimensions range from 100mm to 200mm in width and 100mm to 150mm in height. To maintain the illusion of full-depth structural blocks, we produce matching L-shaped corner pieces. These corner wraps feature a long side of 150-250mm and a short side of 50-100mm, providing full-depth visual integrity at every junction.

• The random-size philosophy ensures no two feature walls look identical, preserving the natural variation of the quarry vein.
• L-shaped corners weigh approximately 25 kg per lineal meter and provide a seamless wrap around columns and wall edges.
• Individual loose stones allow masons to customize the joint width and pattern for a more artisan-level finish.

Dimensional Differences Between Thin Veneer and Full Bed Stone

Choosing thin stone veneer represents a 75% reduction in depth and weight compared to the 3-5 inch thickness of traditional full-bed stone. This spatial advantage makes thin veneer the ideal choice for interior renovations, such as kitchen backsplashes or fireplace retrofits, where floor space is at a premium. Because the veneer is adhered directly to the wall, it eliminates the requirement for structural foundation ledges or expensive shelf angles. This reduction in material and structural prep often results in a 30% to 50% cost savings over full-depth masonry projects.

• Thin veneer requires only 1 to 1.5 inches of clearance, making it compatible with existing windows and door trims.
• Full-depth stone requires a concrete footing or ledge to support its 40+ lbs/sq ft weight, while thin veneer relies on bond strength.
• The slim profile minimizes the shipping volume, allowing for more square footage per container and reducing the environmental impact of transport.

The Weight Limits: Staying Under 15 lbs Per Square Foot

Adhering to the 15 lbs per square foot (psf) threshold allows architects to specify genuine natural stone without the structural overhead or foundation ledges required for traditional heavy masonry.

Defining the 15 PSF Dead Load Threshold

The 15 lbs per square foot limit functions as a non-negotiable benchmark in modern residential engineering. This figure represents the maximum allowable dead load for adhered veneers before the project requires specialized structural reinforcements or additional footings. By staying within this limit, designers ensure that the stone facade integrates seamlessly with standard wood or steel framing systems used in 2026 construction.

Architects calculate these loads to account for the permanent weight of the building envelope. When the cladding exceeds 15 psf, the structural focus shifts toward masonry ledges and reinforced foundations, which drastically increases material costs and labor time. Maintaining a lightweight profile ensures that the primary frame carries the load safely without risk of structural deflection.

Weight Profiles of Natural Thin Stone

Natural thin stone veneer achieves its lightweight profile through precision manufacturing. Unlike full-depth blocks, these pieces are processed with an individually sawn-back finish, maintaining a thickness strictly between 25mm and 40mm. This dimensional control keeps the weight at approximately 65kg per square meter, or roughly 13.3 lbs per square foot, providing a safety margin under the 15 psf code limit.

• Precision-cut sawn backs reduce bulk while ensuring a flat surface for maximum bond strength.
• High-density quartzite and granite options provide superior durability without the weight of 5-inch thick masonry.
• The lightweight nature allows for installation on diverse substrates including cement backer board and masonry.

Structural Advantages of Lightweight Veneers

The primary advantage of materials weighing under 15 psf is the elimination of complex support systems. Contractors save significantly on labor and material costs by bypassing the heavy masonry anchors and structural footings required for full-thickness stone. Because the veneer is adhered rather than stacked, it relies on the tensile strength of the mortar and the substrate rather than a vertical support ledge.

This weight profile expands design possibilities for interior spaces. Features like floor-to-ceiling fireplaces or accent walls can be installed on standard drywall—provided a cement backer board is used—without the need to reinforce the subfloor or joists below. This makes thin stone an ideal choice for retrofit projects and upper-story applications where weight restrictions are stringent.

Compliance with 2026 Building Standards

Modern building codes balance dead load minimization with seismic performance requirements. Engineers select materials that meet the 10–15 psf specification to optimize span capacity in residential framing. In seismic zones, the reduced mass of thin stone veneer minimizes lateral forces during an event, improving the overall safety of the building envelope.

Adhering to these weight limits ensures long-term performance and reduces the risk of structural deflection or substrate failure. As building envelopes become more high-performance and cost-efficient, the use of individually sawn-back thin stone remains the industry standard for achieving authentic masonry aesthetics without the structural compromises of traditional heavy stone.

Boost Project Value With Real Stacked Stone

Increase your margins with fast-installing interlocking panels that reduce labor costs and eliminate the need for structural footings. Our factory-direct supply chain ensures consistent quality and reliable stock for all your professional architectural needs.

Request Your Wholesale Quote →

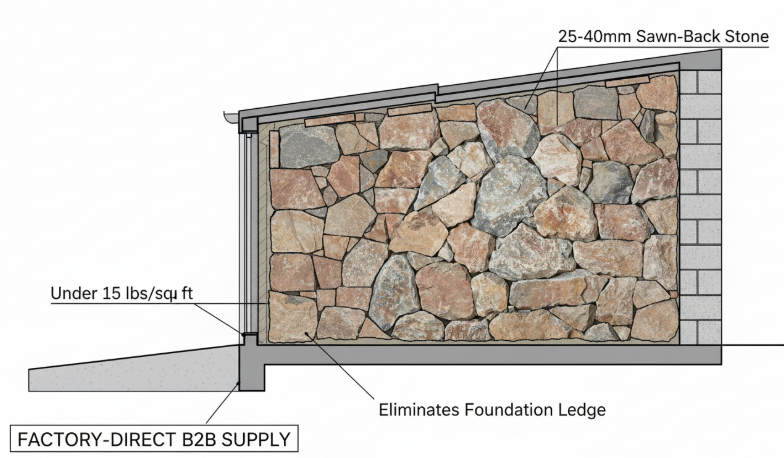

Why Thin Stone Requires No Structural Foundation Ledges

Adhered thin stone veneer systems eliminate the need for load-bearing footings by maintaining a dead load below the 15 lbs per square foot regulatory threshold, allowing for direct installation on standard vertical substrates.

Building codes differentiate between adhered and anchored masonry based on the total dead load exerted on the structure. Natural thin stone from Top Source Stone maintains a profile between 25mm and 40mm, which translates to a weight of approximately 8 to 13 pounds per square foot. This lightweight profile stays well below the limits that trigger heavy masonry support requirements, such as concrete foundation ledges or steel lintels.

Weight Thresholds for Adhered Veneer Systems

Standard wall framing and sheathing provide sufficient lateral and vertical support for these specific load weights. Because the stone does not exceed the 15 psf threshold, the wall assembly supports the stone through adhesion rather than needing a weight-bearing base. This allows for broader application across various architectural styles without the structural overkill required by full-depth building stone.

• Natural thin stone typically weighs 13 lbs per square foot, providing a 75% weight reduction compared to full-bed veneer.
• Modern framing easily handles the dead load of adhered systems when studs are spaced at 16 inches on center.
• Adhered systems rely on the shear and tensile strength of the mortar bed rather than compressive gravity support.

Mechanical Bond Strength vs. Gravity Support

High-strength adhesives and specialized mortar beds replace the need for traditional structural shelves by creating a permanent bond with the substrate. Top Source Stone utilizes an individually sawn-back finish on every piece of loose stone. This precision-cut flat surface maximizes the bonding area, ensuring that the weight of each individual stone transfers directly to the vertical backup wall.

Because these are loose stones and not pre-glued panels, installers create a bespoke random-lay pattern where each stone remains independent. This installation method ensures that the stones do not rely on the pieces below them for structural stability. Contractors can start installation at any height, offering significantly more freedom than full-bed masonry, which must be built from the ground up.

Eliminating Foundation Footing Costs

Skipping the structural ledge reduces project complexity and material expenses. Builders avoid the labor and material costs associated with pouring thick concrete footings or installing heavy-duty steel lintels at every floor level. Our sawn-back thin veneer reduces on-site labor costs by up to 30% because it requires no specialized masonry equipment to manage heavy loads.

• Removing ledge requirements allows for stone application in retrofit projects where the original foundation did not account for stone weight.
• Architects gain design flexibility by placing stone accents on upper stories without extending foundation supports to those levels.
• Lower transportation and handling costs result from the reduced mass of the thin veneer system.

Substrate Requirements for Ledge-Free Installation

While a foundation ledge is unnecessary, the vertical surface must meet specific structural standards to ensure long-term performance. Surfaces must be structurally sound, typically consisting of concrete, CMU, or cement backer units over wood or steel studs. In exterior applications, we recommend applying a moisture barrier and drainage mat to protect the backup wall from water infiltration, especially in climates prone to freeze-thaw cycles.

The system relies on the integrity of the backup wall to resist settlement and thermal expansion. By using high-density quartzite or granite loose stone, the installation achieves a climate-tested durability that rivals traditional masonry. The “Authentic Masonry Corner Wrap” further enhances this look, providing the visual depth of a full-thickness wall while maintaining the structural advantages of a lightweight, ledge-free installation.

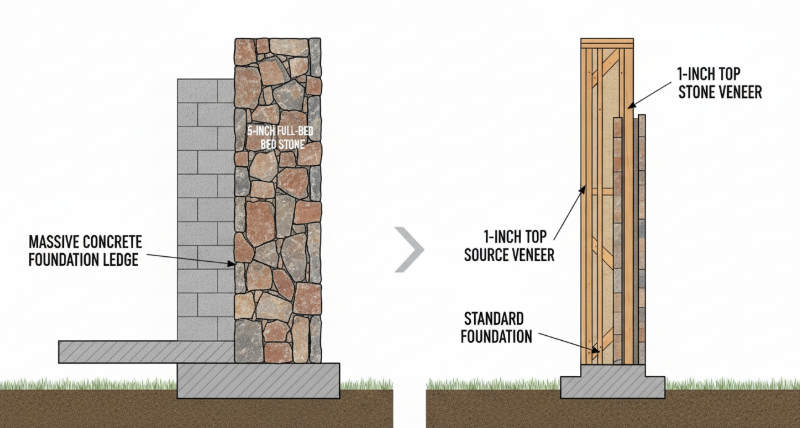

Comparing Thickness: Thin Veneer vs Full Bed Stone

Switching from full-bed masonry to sawn-back thin stone veneer reduces structural dead loads by approximately 75% without compromising the authentic mineral texture of a 100% natural stone facade.

Thin stone veneer typically measures between 0.75 and 1.25 inches thick, maintaining a lightweight profile that stays within the 7 to 15 pounds per square foot range. Top Source Stone maintains a strict thickness control of 25–40mm for its loose stone products to ensure they meet modern building code requirements for adhered veneers. Full-bed stone reaches depths of 3 to 5 inches, which forces the structural load to jump to 35 or 45 pounds per square foot. This reduced profile makes thin veneer the standard choice for interior drywall applications where heavy masonry is physically impossible to support.

Structural Foundation and Ledge Requirements

The weight difference dictates whether a project requires expensive masonry infrastructure or simple surface preparation. Thin veneer attaches directly to structural surfaces like concrete or cement board, which removes the need for foundation ledges or wall ties. Full-bed stone requires a dedicated concrete footing to support the vertical load of the material. Architects select thin veneer for 2026 retrofit projects because it bypasses the need for costly structural reinforcements that full-thickness stone demands.

Labor Efficiency and Transport Costs

Material thickness impacts the budget through shipping logistics and installation speed. Full-bed stone installations typically cost 30% to 50% more than thin veneer projects because of the increased material volume and labor intensity. Thin veneer allows for faster installation using individually hand-laid stones that bond instantly to the substrate. Shipping lighter thin veneer reduces transportation costs and allows more square footage per container, maximizing the loading capacity for B2B importers.

Weather Resistance and Visual Depth

Both options utilize 100% natural stone, but thickness influences long-term durability and aesthetics. Full-bed stone provides high thermal mass and protection against moisture penetration in extreme climates. High-quality thin veneer offers the same authentic surface texture but provides a more streamlined, modern look. By using authentic masonry corner wraps, installers create the visual depth and shadow lines of a full-thickness wall while keeping the project lightweight and efficient.

Calculating the Structural Load for Exterior Facades

Structural load calculations for 2026 building projects prioritize the 15 lbs per square foot dead load threshold to ensure thin stone veneer remains compatible with lightweight framing and modern wall substrates.

Dead load analysis evaluates the permanent, non-moving weight of the facade components to determine the total gravity load exerted on the building structure. For projects utilizing Top Source Stone products, this involves calculating the cumulative weight of the individually sawn-back loose stone, the high-strength epoxy adhesive, and the backing substrate. Unlike full-bed masonry, natural thin stone veneer significantly reduces the burden on the building’s primary structural elements.

The lightweight profile of these materials—strictly maintained at a 25–40mm thickness—allows for direct adhesive application. This eliminates the requirement for heavy-duty structural foundation ledges or complex wall ties. By maintaining a dead load between 13 and 15 lbs per square foot, architects can specify natural stone for upper-story applications and retrofits where structural capacity is limited.

Wind Pressure and Suction Force Resistance

Structural engineers calculate the capacity of the stone veneer system to withstand external air pressures and suction forces. This analysis establishes the minimum ultimate force requirements based on current building safety standards. Calculations must account for both positive pressure pushing against the facade and negative suction pulling the individual stones away from the wall.

• Engineers identify corner and edge zones where wind loads concentrate, often requiring specific adhesive patterns to ensure bond integrity.
• The flat, sawn-back surface of the stone increases the contact area with the adhesive, improving the system’s resistance to suction forces.
• Testing verifies that the bond strength between the natural stone and the substrate exceeds the calculated wind pressures for the specific project location.

Seismic Lateral Force Procedures

Seismic calculations account for horizontal out-of-plane forces acting on the facade during ground acceleration. Using site-specific seismic acceleration parameters (SDS), we compute the lateral force perpendicular to the face of the stone. For professional installations, these calculations establish a maximum horizontal seismic force range of 25–37 lbs per connection or anchor point.

Because thin stone veneer utilizes a lower mass than full-depth stone, the lateral forces generated during a seismic event are significantly reduced. The system combines the reduced stone weight with high-performance bonding agents to ensure the stone remains adhered to the building envelope, maintaining safety and visual integrity under ground acceleration.

Deflection Limits and Attachment Integrity

Monitoring the maximum allowable bending of the support system is necessary to prevent material failure. Structural analysis ensures the substrate provides a rigid enough surface for the bespoke random-lay stone pattern to maintain a seamless appearance without cracking. Excessive deflection in the backing wall can lead to stone fractures or the failure of perimeter sealants.

• Calculations verify that anchors, metal frames, or cement boards meet ASCE 7 standards for project compliance.
• A rigid substrate prevents stress concentration in the mortar or adhesive bed, preserving the long-term bond of the sawn-back stones.
• System integrity is maintained by ensuring the framing spacing—typically 16 inches on center—is sufficient to support the specific stone weight without bowing.

Conclusion

Specifying natural stone within the 25–40mm range ensures projects stay under the 15 lbs per square foot threshold to avoid the need for structural foundation ledges. Using individually sawn-back pieces provides the authentic look of traditional masonry while reducing the total load on exterior wall assemblies. This balance of weight and thickness allows for versatile application across residential and large-scale commercial facades.

Evaluate your next project’s structural needs to see how these lightweight specifications can simplify your build process. Contact Top Source Stone for a technical catalog or to request a sample of our quarry-sourced materials.
