Applying stone veneer over brick provides a fast path to modernizing aging facades, yet failure to account for substrate stability often results in structural delamination and significant liability for contractors. While the aesthetic upgrade is immediate, an incorrect bond or overlooked moisture barrier leads to costly rework and safety hazards that can compromise the long-term value of the property. Ensuring the existing masonry can support the added dead load remains the difference between a successful renovation and a failed investment.
This technical protocol establishes the standard operating procedures for a professional-grade overlay. It covers field tests for masonry integrity, specific surface preparation for both natural and painted finishes, and the engineering requirements for metal lath reinforcement. Following these steps ensures the finished facade meets local building codes and maintains its bond strength against environmental stressors and structural settling.
Can you put stone veneer directly on brick?
Installing stone veneer directly over brick is a standard masonry practice that works exceptionally well if the substrate is unpainted, porous, and structurally capable of supporting the added dead load.
Direct Application on Unpainted Masonry
Natural stone veneer creates a permanent mechanical lock with clean, unpainted brick because the open pores of the masonry allow the mortar to migrate into the surface. At Top Source Stone, our thin stone veneer features an individually sawn-back finish, which provides a perfectly flat bonding surface that maximizes this contact area. We find that this precision cut reduces on-site labor by ensuring the stone sits flush against the brick without the need for excessive mortar “shimming.
- Confirm the brick surface is free of sealers, paint, or soot that might block adhesion.
- Clean the substrate thoroughly with a pressure washer or stiff brush to remove loose debris.
- Allow the masonry to dry completely for at least three days in 2026 weather conditions before applying mortar.
Limitations of Painted or Sealed Surfaces
Bonding stone veneer directly over paint or waterproof sealers is a high-risk move that frequently results in delamination. Mortar requires a mineral-to-mineral connection to achieve its rated tensile strength; paint acts as a bond-breaker, preventing the mortar from reaching the brick’s pores. To ensure climate-tested durability, we recommend exposing the raw brick or mechanical intervention to create a new bonding plane.
- Remove existing paint through sandblasting or professional grinding to expose the raw brick.
- Install a cement backer board or metal lath system if paint removal is not feasible for the project.
- Test a small area with a bond test to ensure the mortar adheres permanently before proceeding with the full installation.
Bonding Requirements for Interlocking Panels
While we prioritize a bespoke random-lay pattern using loose stones for full-depth visual integrity, some projects utilize interlocking panels. These Z-shaped systems demand a strictly flat surface; even minor deviations in the brick substrate can cause the panels to kick out, creating visible seams. We use a leveling coat to bridge any deep mortar joints, ensuring the panel sits on a uniform vertical plane.
- Fill deep or recessed mortar joints with a leveling coat of mortar to create a uniform plane.
- Use high-strength polymer-modified thin-set specifically formulated for natural stone products.
- Apply the mortar using the back-buttering technique to ensure 100% coverage between the brick and the stone panel.
Inspecting Brick Integrity: The “Tap Test”
Structural success for thin stone veneer hinges entirely on the mechanical bond of the substrate; a failing brick face will inevitably lead to delamination regardless of mortar quality.
Identifying Hollow Sounds Through Percussion
We use percussion testing to verify the internal density of the brick substrate before any material is staged. Striking the surface with a masonry hammer or a solid metal tool should produce a sharp, ringing tone, signaling a solid connection to the backup wall. This resonance confirms the brick remains dense and firmly attached to the structural substrate.
- Listen for sharp tones that indicate the brick is capable of supporting the 65kg/m² weight of our natural stone.
- Mark areas that produce a dull, hollow thud, as these signify internal delamination or air pockets.
- Repeat the test across a 2026-standard grid pattern to ensure the entire wall maintains uniform density.
Evaluating Surface Spalling and Flaking
Surface spalling represents a critical failure point where the brick face physically separates from the core. We perform a visual and tactile scan to find areas where the brick face is crumbling or peeling away. Since our individually sawn-back stones require a stable interface for high-strength mortars, any loose debris must be mechanically removed to reach a sound, non-friable layer.
- Run a wire brush over suspicious areas to see if the brick continues to shed material under light pressure.
- Assess whether the deterioration is localized or systemic across the facade to determine if a full wire lath is necessary.
- Remove all friable material to ensure the high-strength mortar bonds directly to the solid masonry core.
Testing Porosity and Water Absorption
Successful adhesion requires the brick to be porous enough to pull the cementitious bond into its pores. By spraying water onto the surface, we monitor the absorption rate to identify hidden barriers such as old sealers or silicates. If the brick does not absorb water, the thin-set cannot achieve the mechanical “key” required for a permanent hold.
- Monitor the absorption rate to verify the brick is ready for a mortar bond.
- Watch for water beading, which signals the presence of silanes or siloxanes that block mechanical bonds.
- Verify the brick allows the thin-set to penetrate without drying the mixture out too quickly, which can cause “charring” of the bond.
Verifying Mortar Joint Stability
The condition of the existing mortar joints dictates the flatness of the stone installation. We scrape the joints with a screwdriver to check for sandy or powdery consistency, which suggests the mortar has reached its end-of-life and requires remediation. Recessed or missing mortar creates air gaps and uneven pressure points behind the individually laid stones.
- Identify recessed or missing mortar that could create structural instability for the bespoke random-lay pattern.
- Ensure joints are flush or slightly recessed to provide a flat bonding plane.
- Grind down protruding mortar to prevent the stone veneer from rocking during installation.
Premium Natural Stone for Architectural Excellence
Prepping Painted vs. Natural Brick Surfaces
Substrate preparation protocols determine the long-term shear strength of thin stone veneer, shifting from simple debris removal on natural masonry to aggressive mechanical stripping on coated surfaces.
Cleaning Natural Brick with Modern Methods
We prioritize dust-minimizing techniques like water blasting or sponge blasting over traditional sandblasting to protect the masonry integrity and the surrounding environment. This approach effectively removes accumulated dirt and organic growth without damaging the brick’s structural face. Installers must remove all efflorescence—the white, powdery salt deposits—and loose mortar before proceeding, as these contaminants prevent the stone veneer adhesive from forming a permanent bond with the structural brick.
The surface must reach a state of complete dryness before application. Trapped moisture behind natural stone panels leads to freeze-thaw damage and adhesive failure. We recommend a minimum drying period of 72 hours following any high-pressure cleaning to ensure the substrate’s internal moisture levels have stabilized.
| Surface Condition | Preparation Method | Bonding Protocol |
|---|---|---|
| Natural/Uncoated Brick | Sponge blasting & Efflorescence removal | Direct application with Type S Mortar |
| Painted Masonry | Mechanical abrasion or Chemical stripping | Specialized bonding agent or Metal lath |
| Aged/Spalling Brick | Removal of loose units & Surface leveling | pH-neutral primer + Polymer-modified mortar |
Stripping and Conditioning Painted Surfaces
Painted brick creates a non-porous barrier that prevents standard adhesives from gripping the substrate effectively. We recommend removing acrylic latex or oil-based paints through mechanical abrasion or chemical stripping to reveal the original masonry pores. If the paint remains well-adhered and cannot be removed without damaging the underlying structure, installers must apply a specialized bonding agent or install a metal lath system to provide a mechanical grip for the stone.
- Test the bond strength on a small, inconspicuous area to confirm the substrate can support the 8-13 lbs per square foot weight of natural stone veneer.
- Use diamond-grinding tools for heavy paint buildup to ensure at least 90% of the brick surface is exposed.
- Avoid using form release agents or oil-based cleaners that leave residues behind.
Applying Bonding Agents and Primers
Modern bonding treatments improve the interface between the brick substrate and the stone veneer adhesive. Specialty masonry primers create a uniform surface tension, which helps high-strength epoxy or thin-set mortar achieve a permanent hold. Conditioning treatments also stabilize older, porous brick that might otherwise pull moisture too quickly from the mortar, leading to a weak, “starved” bond.
Current 2026 installation standards emphasize using pH-neutral primers that match the chemical composition of natural stone like slate and quartzite. These primers prevent alkaline reactions that can cause discoloration or mineral leaching in the stone. By stabilizing the suction of the brick, these treatments allow the mortar to cure slowly and reach its full design strength, supporting the weight of individually sawn-back stones for the life of the structure.

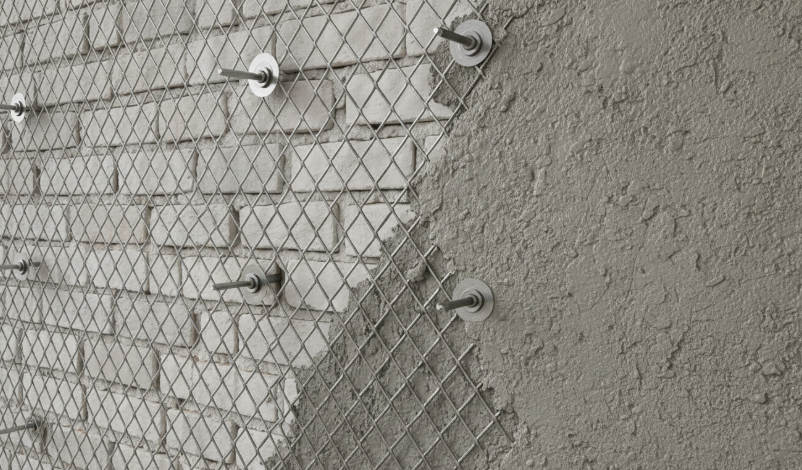

To Lath or Not: When a metal mesh is required
Mechanical lath transforms a contaminated or non-porous brick surface into a high-friction substrate, essential when chemical mortar bonds are compromised by paint, sealants, or high-density masonry.
Overcoming Painted or Sealed Surfaces
Paint and siloxane-based sealants act as aggressive bond-breakers, preventing standard Type S mortar from achieving a chemical connection with the brick. While stripping paint through sandblasting remains an option, the 2026 renovation market favors mechanical lath as a more cost-effective and cleaner alternative. By securing metal mesh directly to the brick, you bypass the need for a perfectly clean surface and create a structural “key” for the mortar to grip.
- Installers must use metal lath whenever the existing brick shows evidence of any coating, paint, or water repellent.
- The mesh provides a mechanical attachment point for the scratch coat, ensuring the veneer does not rely on the adhesion of old paint layers.
- Mechanical lath often proves more budget-friendly than labor-intensive chemical stripping or abrasive blasting.
Corrosion Resistance for Exterior Exposure
Outdoor masonry systems face constant moisture cycles that can degrade internal reinforcements. Choosing the right material for your mesh prevents “rust-jacking,” where corroding steel expands and forces the stone veneer to delaminate from the wall. In 2026, we prioritize galvanized or stainless steel mesh to ensure that the moisture-resistant properties of Top Source Stone’s high-density quartzite are not undermined by a failing internal structure.
| Substrate Condition | Required Reinforcement | Sawn-Back Advantage |
|---|---|---|
| Painted or Sealed Brick | 2.5 lb or 3.4 lb Galvanized Lath | Flat surface ensures 100% contact with scratch coat. |
| Dense/Smooth Masonry | Self-Furring Metal Mesh | Precision-cut back reduces mortar waste on mesh. |
| Clean, Porous Brick | Direct Bond (Optional Lath) | Saves 30% on-site labor via individual hand-laid speed. |
Addressing Structural Integrity and Smooth Masonry
Not all brick is created equal; smooth-faced or extremely dense brick lacks the natural porosity required for a strong suction bond. If a water droplet test shows the brick is not absorbing moisture, the mortar will simply slide off the surface during installation. In these cases, a metal lath system is mandatory to distribute the weight of the thin stone veneer across the wall.
- Mechanical fasteners must penetrate the brick or mortar joints to lock the mesh in place, providing a permanent anchor for the veneer.
- The lath effectively manages the 65kg/m² load of natural stone veneer, preventing sagging or displacement during the curing process.
- Using self-furring lath ensures a consistent mortar thickness behind the stones, which is vital for maintaining the bespoke random-lay pattern.
Compliance with 2026 Building Safety Standards
Modern masonry codes emphasize long-term material durability and verified installation techniques. Following these standards ensures the project maintains its property value and passes local safety inspections. For professional B2B installers, adhering to ASTM specifications is the only way to guarantee a permanent, failure-free installation on existing brick substrates.
- Contractors must verify that all mesh installations meet ASTM C1063 specifications for lath and furring.
- Ensure the lath overlaps by at least one inch at all horizontal and vertical seams to maintain a continuous reinforcement plane.
- Verified installation methods protect the high-strength quartzite integrity of the veneer from substrate-level moisture damage.

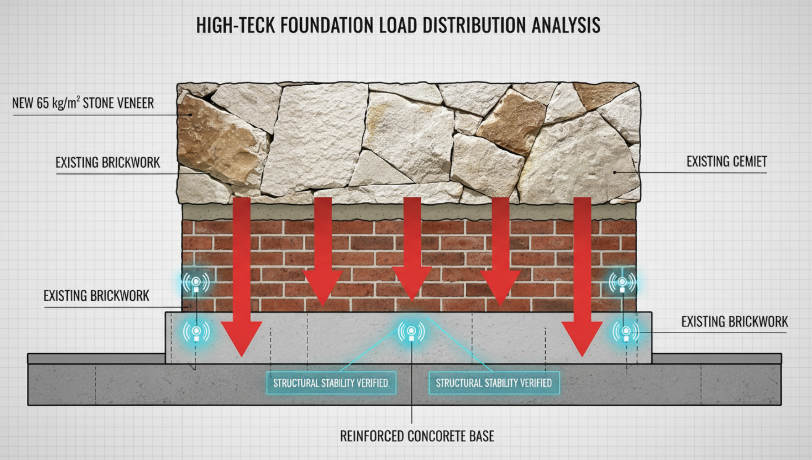

Managing Added Weight on Existing Foundations
Adding stone veneer to an existing brick substrate requires a precise audit of load-bearing margins to ensure the underlying foundation sustains the additional weight without structural compromise.
Engineers perform site-specific analysis to determine if current structures support new materials without risk. We assess foundation limits using geotechnical investigations to identify current soil stability and load-bearing margins. Most existing foundations accommodate minor weight increases—often up to 10%—without requiring structural reinforcement. Before we add new stone layers, we verify that the underlying brick or concrete remains free of significant cracks or settling.
Weight Advantages of Natural Stone Veneer
Modern thin stone veneer offers a lightweight alternative to full-thickness masonry. Top Source Stone maintains a strict thickness control of 25–40mm, which keeps the weight at approximately 65kg/m². This precision-cut, sawn-back design reduces mass while providing the authentic texture of 100% natural stone. Because this weight range typically falls within the existing load-bearing safety limits, installers often eliminate the requirement for new footings or wall ties.
| Material System | Avg. Weight (kg/m²) | Foundation Requirement |
|---|---|---|
| Thin Stone Veneer (Loose) | ~65 kg/m² | Standard masonry substrate |
| Manufactured Concrete Stone | ~45-55 kg/m² | Standard masonry substrate |
| Full-Depth Structural Stone | ~350-500 kg/m² | New concrete footings & ties |
Renovation projects in 2026 rely on these lightweight materials to maintain architectural integrity. By choosing a sawn-back product, we ensure the stone fits flush against the brick, minimizing the leverage effect that heavier, irregular stones exert on vertical surfaces.
Foundation Strengthening Techniques
When projects exceed the safe weight threshold, specific engineering interventions restore and enhance structural stability. We implement foundation widening or underpinning to distribute increased vertical loads across a larger surface area. For projects with limited access, we use micropiles to provide high-load capacity with minimal site disturbance. We prioritize low-vibration installation technologies during this phase to prevent damage to the existing brickwork while we strengthen the base.
Monitoring Structural Performance
Digital tools and real-time data provide ongoing safety verification during and after the stone installation. We deploy digital monitoring sensors to track minute movements or shifts in the foundation as we add the veneer. This proactive approach includes:
- Scheduling periodic inspections to ensure the bond between the new veneer and the original substrate remains secure.
- Reviewing site-specific data regularly to confirm the foundation performs within the predicted engineering parameters.
- Adjusting installation speed if sensors detect unexpected compression in the underlying soil.
By integrating these monitoring protocols, we ensure that the transition from a brick facade to a natural stone feature wall remains structurally sound for the life of the building.
Conclusion
Installing stone veneer over existing brick transforms surfaces into high-end architectural features when contractors follow rigorous surface prep and weight-bearing protocols. Using individually sawn-back natural stone ensures a maximum bonding surface and reduces the risk of delamination over time. These technical steps protect the structural integrity of the wall and ensure a professional finish that lasts decades.
Assess your current brick facade to identify if it needs a metal lath system or simple mechanical cleaning before starting the overlay. You can view our full range of quarry-direct natural stone options or contact us to receive a wholesale catalog for your next development project.
Frequently Asked Questions
How to prep a brick wall for stone veneer?
To prepare a brick wall, first ensure the surface is clean and structurally sound. If the brick is painted, you must remove the paint via sandblasting or chemical stripping, or alternatively, install a metal lath or cement board over the brick. For unpainted brick, clean the surface thoroughly with a pressure washer and mild detergent, then allow it to dry for at least 72 hours. Finally, fill any deep recessed grout lines with mortar to create a level, even surface for the stone to bond to.
Can you glue stone to brick?
Yes, you can bond stone veneer directly to brick using specialized adhesives or mortar. While traditional Type S mortar is the industry standard for creating a permanent mechanical bond, high-performance polymer-modified thin-sets and heavy-duty masonry adhesives are highly effective for direct application. The brick must be clean, porous, and free of sealants or paint to ensure the adhesive achieves a secure hold.
Does stone veneer add too much weight to brick?
In almost all cases, a structurally sound brick wall can easily support the weight of stone veneer. Manufactured stone veneer is specifically designed to be lightweight, typically weighing less than 15 pounds per square foot. This is well within the load-bearing limits of standard masonry. However, if the existing brick is crumbling or the mortar is failing, those structural issues must be repaired before adding the additional weight of the veneer.
Do I need a permit to cover brick?
For interior projects, a permit is generally not required. For exterior installations, requirements vary by local municipality. While stone veneer is often viewed as a cosmetic finish, some jurisdictions require a permit if the work involves a significant change to the exterior thermal envelope or if there are specific zoning or HOA guidelines. It is always recommended to check with your local building department before beginning exterior work.
How long does stone over brick last?
When properly installed and maintained, stone veneer over brick can last between 30 and 50 years, often matching the lifespan of the building itself. The durability depends on the quality of the bond and, for exterior applications, the management of moisture through proper flashing and drainage. High-quality manufactured or natural stones are designed to withstand significant weathering without losing their aesthetic appeal.
Best adhesive for stone on brick?
The best adhesive for professional results is a polymer-modified Type S mortar or a high-strength masonry thin-set. These products provide the necessary flexibility to handle temperature fluctuations while maintaining a powerful bond. For smaller interior accents or DIY projects, specialized polyurethane construction adhesives (such as Loctite PL Premium) are excellent alternatives that offer high initial tack and long-term durability.
