Installing Stone Veneer Corners: Achieving a Solid Stone Appearance

Corner Mastery determines whether a commercial project maintains its structural aesthetic or reveals itself as a budget-saving imitation, leading to costly reworks and damaged contractor reputations. When masonry teams fail to execute corners correctly, they create visible vertical seams that compromise the illusion of full-depth stone. This lack of precision often results in project delays and client disputes over the finished quality of the building envelope.

We designed this technical guide to standardize the installation process, covering the shift from basic mitered cuts to the use of L-shaped corner units. You will find specific protocols for staggering joints to eliminate unnatural vertical lines and methods for handling non-standard angles. This SOP serves as a blueprint for crews to integrate corner pieces with flat stones, ensuring the finished wall meets high-level masonry standards.

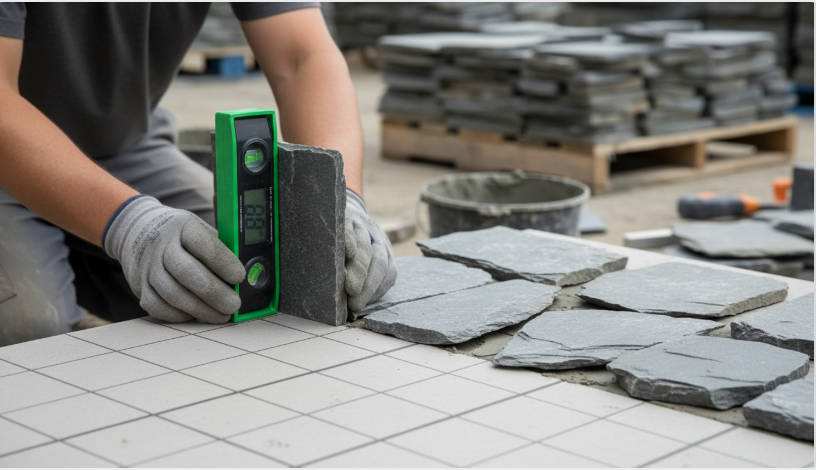

Corners First: The Golden Rule of Veneer Installation

Professional masonry dictates that starting with corner units establishes the necessary vertical and horizontal benchmarks to ensure the entire project remains plumb while concealing raw cut edges within the wall field.

Establishing Horizontal Alignment

Setting corner pieces before flat stones provides a stable reference point for maintaining level rows across the entire project area. By 2026 standards, experienced installers treat these L-shaped units as fixed vertical guides, which eliminates the risk of “creeping” horizontal lines that often plague amateur installations. Because Top Source Stone utilizes a 100% Sawn-Back finish, these corners sit perfectly flush against the substrate, allowing for a precise 90-degree reference that simplifies the layout of the subsequent primary field stones.

• Installers use the corner piece as a fixed vertical guide to ensure each subsequent row of flat pieces remains perfectly level.
• L-shaped corner pieces create a natural 90-degree reference that simplifies the horizontal layout of the primary field stones.
• This approach reduces the need for constant recalibration and manual adjustments as the installation progresses along the wall.

Concealing Cut Edges for a Natural Finish

Prioritizing corners ensures that raw, cut edges of the stone remain hidden from prominent view, preserving the authentic look of the material. When you place factory-finished corners first, you force any necessary trimming to occur in the middle of the wall or at inside corners where they are significantly less visible. This technique maintains the “Authentic Masonry Corner Wrap” effect, where the 25–40mm thickness of the natural stone appears as a solid structural block rather than a thin cladding.

• Placing factory-finished corners first forces any necessary stone trimming to occur in the middle of the wall or at inside corners.
• This technique prevents the unfinished “raw edge” look that occurs when flat stones are cut to fit an outside corner.
• Maintaining the textured factory edge on all visible outside corners preserves the three-dimensional character of the natural stone.

Preventing Vertical Seam Alignment

Starting from the corner allows for intentional staggering of joints, which avoids weak and unattractive vertical lines in the masonry. By alternating the long and short legs of our L-shaped corner returns (typically ranging from 150-250mm on the long side to 50-100mm on the short side), the vertical joints of the following field stones are naturally offset. This method eliminates the “zipper effect”—a common installation failure where seams line up perfectly—and ensures the finished wall mimics the structural integrity of traditional hand-laid dry stack.

• Alternating the orientation of L-shaped corner returns automatically staggers the vertical joints of the following flat stones.
• Breaking up vertical seams improves the structural appearance and closely mimics traditional, hand-laid masonry techniques.
• This method eliminates the “zipper effect” where seams line up perfectly, a common error that detracts from the high-end value of natural veneer.

L-Shaped Corner Units vs. Mitered Site Cuts

L-shaped corner units utilize factory-precision cutting to provide an “Authentic Masonry Corner Wrap” that eliminates the structural volatility and high labor costs associated with manual field mitering.

In the 2026 construction market, labor efficiency dictates project profitability. Pre-manufactured L-shaped units significantly outperform mitered site cuts by streamlining the technical requirements for corner transitions. Contractors using these ready-to-install pieces complete corner work faster, which allows them to bypass the specialized labor needed for diamond-saw mitering. This transition from site-based fabrication to factory-precision components reduces material waste caused by accidental breakage during complex cuts.

Structural Integrity and Precision Fit

Factory-controlled manufacturing ensures that corner joints maintain their bond far longer than field-cut alternatives. Using advanced infrared cutting equipment, we produce precise 90-degree angles that interlock seamlessly with the flat field stones. These units rely on high-strength resins applied under controlled environments to create a permanent bond, whereas site-mitered corners often suffer from expansion and contraction issues due to fluctuating temperatures.

Aesthetic Consistency and Seam Management

L-shaped units preserve the natural surface texture of the stone face, creating the genuine appearance of full-thickness structural masonry. Field-mitered cuts often expose the raw interior of the material, revealing a sawn edge or a different internal color that clashes with the weathered face of the stone. By using standardized corner units, installers eliminate the visible vertical grout lines and “zipper effects” often associated with poorly executed field miters.

Handling Non-Standard Geometric Requirements

While L-shaped units are the standard for 90-degree corners, mitered site cuts retain a specific role in architectural projects involving irregular angles. Skilled installers apply mitered cuts to navigate 45-degree angles or custom architectural slopes where factory units do not apply. This flexibility remains necessary for historical restorations or irregular stone pillars, though it requires diamond-blade saws and careful edge-dressing to mimic the quality of factory-finished L-units.

Premium Stacked Stone for Architectural Needs

Increase your profit margins with fast-installing, lightweight natural stone panels that eliminate the need for structural footings. As a direct manufacturer, we guarantee consistent quality and factory-direct pricing for all your wholesale requirements.

Request Wholesale Quote →

Staggering Joints: Avoiding Vertical Seams at the Edge

Aligning vertical seams creates structural fault lines; professional installers offset joints to distribute the 65kg/m² load and eliminate the “zipper effect” that characterizes amateur masonry.

Standard 2026 construction protocols dictate that no two vertical joints should align in consecutive courses. This requirement is especially critical for thin stone veneer, where the bond between the sawn-back stone and the substrate relies on a cohesive, unified assembly. By staggering each piece, we ensure that the weight of the upper courses is shared across multiple supporting elements below, rather than concentrating stress on a single point of failure.

The Structural Importance of Offsetting Joints

Offsetting joints creates a resilient assembly that withstands the natural settling of modern wall substrates. When joints remain staggered, the wall functions as an integrated unit. This technique transfers lateral and vertical stress across the entire surface area, protecting the epoxy or mortar bond from localized cracking.

• Maintain a minimum 3-inch offset between vertical joints in adjacent rows to maximize structural integrity.
• Use varying lengths of loose stone to break up the pattern naturally without repetitive cutting.
• Integrate L-shaped corners to anchor the stagger, ensuring the transition from the corner to the flat field remains seamless.

Preventing Continuous Vertical Fault Lines

Aligned joints act as stress concentrators. Over time, environmental stressors such as thermal expansion or seismic settling cause these vertical seams to open, leading to moisture penetration and stone detachment. By breaking these lines, we eliminate the primary failure point in thin stone veneer installations. Staggering ensures the mortar bed remains protected from the linear crack propagation common in low-quality builds.

Optimizing Weight Distribution for Stability

With a weight of approximately 65kg/m², natural stone veneer requires a systematic approach to load management. Staggering ensures that each individual stone shares its load with at least two stones in the course below it. This triangular load distribution prevents localized pressure on the substrate, which is essential when installing over modern materials like rigid foam insulation or cement board.

Achieving a Seamless Natural Aesthetic

A hand-laid wall should never look like a factory-made panel. Our “Bespoke Random-Lay Pattern” relies on the artisan’s ability to weave flats and L-shaped corners together without repeating seams. Using individually sawn-back stones allows for tight, irregular joints that mimic traditional, full-depth structural masonry. This zero-repeat natural variation ensures the finished feature wall maintains its visual integrity from every angle.

How to handle non-90-degree corners?

Achieving professional results on non-standard wall transitions requires abandoning pre-cast solutions in favor of precision field-mitering and digital angle calibration to maintain the visual weight of a natural stone wall.

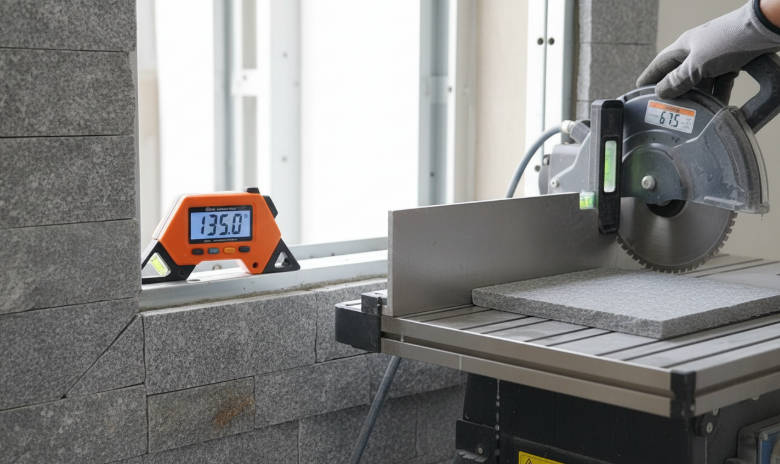

Precision Measurement with Digital Angle Finders

Standard tape measures fail to capture the nuance of settled walls or custom architectural flares. We use digital protractors or electronic angle-finding instruments to determine the exact degree of every transition. Even a two-degree deviation from a standard 135-degree bay window corner creates visible gaps if you rely on guesswork. Before making a single cut in the natural stone, create a physical template using scrap wood or cardboard. This “dry-fit” template allows you to verify the intersection of two stones without wasting premium quartzite or granite inventory.

Executing Field-Mitered Cuts for Custom Angles

Since factory-produced L-shaped corner units only serve 90-degree turns, custom angles require a back-mitered approach. Set the wet saw blade to exactly half of the measured wall angle. For instance, a 130-degree obtuse corner requires two 65-degree miters. We recommend using high-quality diamond blades and infrared cutting guides to ensure a perfectly straight edge across the textured face of the stone.

Always cut from the sawn-back toward the natural face of the veneer. This technique prevents the diamond blade from “blowing out” or chipping the finished surface as it exits the stone. Our 25–40mm thickness provides enough depth to create a substantial miter joint that maintains the appearance of a solid, full-depth masonry block.

Managing Seams with Color-Matched Epoxies

Non-90-degree joints naturally exhibit microscopic gaps due to the irregular surface of natural stone. To hide these seams, mix high-strength stone epoxy with the “fines” or dust collected from the wet saw during the cutting process. This creates a filler that perfectly matches the mineral composition and color of your specific stone batch. Apply the adhesive to the inner edge of the miter, keeping it recessed from the stone face. This ensures the joint remains permanent while preserving the natural shadow lines essential to the “Authentic Masonry Corner Wrap” aesthetic.

Reinforcing Substrates for Acute Corner Loads

Sharp or acute angles concentrate the weight of the stone veneer (approx. 65kg/m²) onto a smaller footprint of the wall substrate. We recommend increasing the fastener frequency on cement backer boards within 12 inches of any custom-angled corner. For exterior projects, non-standard miters are more susceptible to wind-driven rain.

• Apply a secondary waterproofing membrane specifically behind the mitered joint.
• Use extra-strength mortar or polyurethane adhesives to handle the lateral stress of the mitered pieces.
• Verify that the structural framing can support the 8-13 lbs per square foot weight without deflection at the corner point.

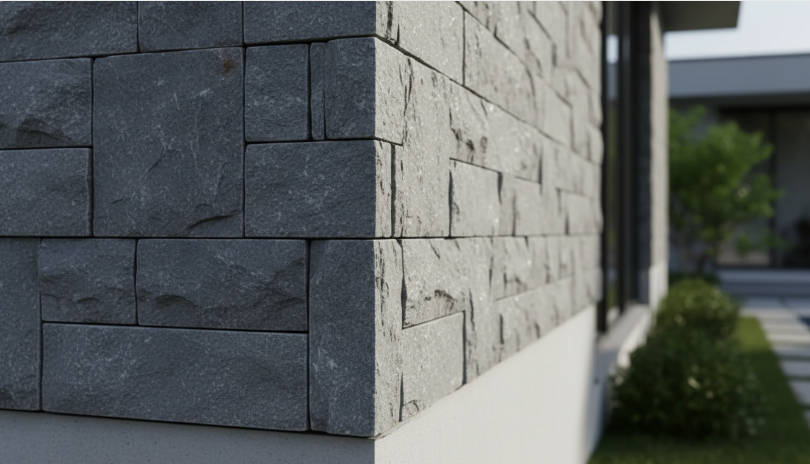

Weaving Flats and Corners for a Natural Look

Achieving an authentic masonry appearance requires a “weaving” approach that alternates the orientation of L-shaped corner units to break up vertical lines and mimic the structural depth of full-bed stone.

Alternating Corner and Flat Panel Placement

Professional installation begins at the corner to establish a solid perimeter for each row. By using L-shaped corner units, installers create a three-dimensional return that gives the wall a massive, structural feel. We prioritize a “weaving” technique where the long and short legs of the corner units alternate on every layer. This prevents a predictable pattern and ensures the transition from the corner to the main wall remains invisible to the naked eye.

• Start each course at the corner using the L-shaped pieces to set the horizontal alignment for the entire row.
• Flip the orientation of corner pieces—alternating the long leg (150-250mm) and short leg (50-100mm) on every subsequent layer.
• Integrate the individually sawn-back flat stones immediately following the corner unit to maintain a continuous, organic flow.
• Maintain tight joints between the corner return and the first flat stone to hide the transition point.

Strategic Staggering of Vertical Joints

Natural stone aesthetics depend on avoiding straight vertical lines that break the visual illusion of a hand-laid wall. Staggering joints is a fundamental masonry principle that prevents “fault lines” which concentrate stress and lead to cracks. For thin stone veneer, this means offsetting the seams so they do not align with the joints in the rows directly above or below. This randomized layout ensures the finished facade looks like authentic, full-thickness masonry rather than a series of stacked sections.

• Offset all vertical joints by at least three to four inches from the course below to eliminate continuous seams.
• Trim individual stones to varying lengths on-site to maintain a bespoke random-lay pattern across the wall.
• Avoid the “column effect” by ensuring that no more than two vertical joints align in any given section of the wall.
• Distribute the load across multiple supporting elements by spreading the weight of the stone through an offset arrangement.

Blending Textures and Color Variations

Natural stone offers zero-repeat variation, but achieving a balanced look requires careful selection during the weaving process. Since stone is sourced from different parts of a quarry vein, slight color shifts are natural. We recommend pulling stones from multiple crates simultaneously to distribute these shades evenly. This prevents “color blocking,” where one area of the wall looks significantly darker or more textured than the rest.

• Mix stones from at least three different crates to ensure quarry-to-project consistency in color and texture.
• Vary the stone thicknesses (ranging from 25–40mm) to create deep shadow lines and a rugged, authentic texture.
• Pre-lay several rows on the ground before applying adhesive to visualize the color distribution and make adjustments.
• Spread out heavily textured or unique mineral pieces to avoid drawing the eye to a single cluster on the wall.

Conclusion

Professional stone veneer installation hinges on the precise placement of L-shaped corners to achieve full-depth visual integrity. Starting with these corner units establishes a natural wrap that mimics traditional masonry while preventing the visible seams associated with inconsistent site cuts. This technique ensures the feature wall maintains its structural appearance and authentic variation across every joint.

Architects and project managers can review our technical specifications to ensure these loose stone components meet specific wall substrate requirements. Contact our team to request a catalog of sawn-back thin stone veneers or to discuss bulk sourcing for upcoming developments.
