The Dry Stack vs. Grout (Decision) directly influences the long-term weatherproofing success and liability profile of a masonry project. Selecting an installation style based solely on visual appeal without considering drainage or structural support often leads to water infiltration and expensive masonry repairs that threaten the project’s bottom line.
This technical breakdown examines the installation mechanics of tight-fit stone versus traditional jointing techniques like overgrouting and raked finishes. We evaluate how these choices shift labor requirements and material costs while providing a framework for choosing the right system for exterior environmental protection.
The Aesthetic Difference: Modern vs. Traditional
Selecting between a seamless dry stack and a defined grout joint dictates whether a project communicates contemporary minimalism or time-honored masonry heritage.
Modern Minimalist Aesthetics with Dry Stacking
Modern architectural projects in 2026 prioritize seamless, tight-fit installations that emphasize stone texture over visible joints. Dry stack techniques create a continuous, uninterrupted surface that suits contemporary residential and commercial interiors. Designers use these methods to create a bespoke random-lay pattern where every stone appears to support the next, providing a clean visual flow that hides the structural substrate.
The Pencil and Flat series provide the linear patterns required for minimalist feature walls and high-end reception areas. By using individually sawn-back stones, installers achieve precision without the distraction of grout lines. This method focuses the viewer’s attention on the zero-repeat natural variation and raw mineral beauty of the quartzite or granite. The resulting look offers full-depth visual integrity, making the thin stone veneer indistinguishable from a traditional, heavy dry-stack wall.
Traditional Textures and Rustic Visuals
Traditional design styles utilize depth and rugged profiles to evoke a sense of heritage and permanence. The Rough series offers deep textures and dramatic shadow play, mimicking the look of heritage masonry found in mountain lodges and rustic estates. Unlike uniform factory-made products, authentic natural stone brings a unique character to traditional fireplaces that man-made alternatives cannot replicate.
Visible mortar joints or varied stone depths provide the organic, “old-world” charm often requested for large-scale residential projects. These techniques highlight individual stone shapes, creating a rugged aesthetic that feels grounded and substantial. Utilizing matching L-shaped corners ensures an authentic masonry corner wrap, maintaining the appearance of full-depth structural blocks even in traditional applications.
Design Trends and Material Selection for 2026
Current market trends show a clear divide in how designers choose stone finishes based on the intended environment and project goals. Architects increasingly select individually sawn-back stone for high-impact interior accents due to its sleek profile and lightweight advantages. This allows for massive feature walls that do not require the heavy footings of traditional full-bed stone.
- Interior designers favor dry-stacked applications for their sophisticated, low-maintenance profile and modern appeal.
- Exterior facades often utilize traditional textures to integrate with natural landscapes and effectively hide environmental wear.
- Commercial specifications prioritize quarry-to-project consistency, ensuring that large-scale orders maintain color harmony across the entire installation.
Professional installers in 2026 balance this aesthetic vision with functional requirements. They choose between flat or rugged profiles to meet specific structural needs and ensure climate-tested durability against harsh freeze-thaw cycles and high UV exposure. This selection ensures the natural stone maintains its structural integrity and color fastness throughout the life of the building.
Dry Stack Reality: Is there really no mortar?
Modern dry stack aesthetics rely on sophisticated, hidden bonding agents and precision engineering to achieve a mortar-free look without sacrificing structural integrity.
Hidden Structural Bonding and Epoxy Resin
The visual appeal of a dry stack wall stems from its apparent lack of mortar, but the internal stability of modern panels depends on high-performance adhesives. We use high-strength epoxy resin specifically formulated for natural stone to bond individual pieces to the panel substrate. This process ensures that the stones remain anchored even under significant environmental stress.
- Manufacturing occurs under controlled temperature and pressure to create a permanent bond that prevents stone fallout.
- The adhesive stays hidden behind the stone faces, maintaining the authentic look of a hand-laid dry-stack wall.
- Industrial-grade resins provide superior adhesion compared to traditional site-mixed mortars.
Tight-Fit Interlocking Z-Panel Systems
Precision engineering removes the need for visible grout by eliminating the gaps between stones. Advanced infrared cutting equipment ensures each stone is sized for a perfect interlocking fit during the fabrication stage. This accuracy allows the Z-shaped panel design to nest pieces together seamlessly, creating a continuous stone surface across the entire wall.
Using these pre-engineered systems reduces on-site labor time significantly. Installers no longer need to manually fit and shim individual stones to achieve a tight joint. Instead, the interlocking panels snap into place, providing a consistent finish that mimics the work of a master mason in a fraction of the time.
Moisture Management Without Grout Barriers
The absence of surface mortar means the installation strategy must account for water penetration behind the panels. Natural stone panels are water-resistant but do not function as a complete waterproof barrier on their own. Water can still find its way into the small crevices between stones during heavy rain or wind-driven storms.
- Exterior applications require a secondary moisture barrier and proper flashing to protect the underlying structure from rot or mold.
- Applying a high-quality natural stone sealer after installation helps prevent staining and simplifies long-term maintenance.
- Proper drainage at the base of the wall ensures that any trapped moisture can escape without causing freeze-thaw damage.
Premium Stacked Stone for High-Margin Projects
Grout Styles: Overgrout, Flush, and Raked Joints
The choice of grout joint style directly dictates whether a thin stone veneer project achieves a contemporary, monolithic look or a heritage-inspired aesthetic while simultaneously impacting the wall’s moisture management profile.
Flush Grout Joints for Modern Aesthetics
Modern projects in 2026 prioritize flush joints to create a streamlined, contemporary surface where mortar sits level with the stone face. This technique eliminates ledges that typically collect dust and debris in interior applications, ensuring a cleaner profile over time. Achieving this look requires high installation precision because installers must avoid smearing mortar across the natural stone texture. For commercial facades and minimalist feature walls, flush joints support a monolithic appearance that highlights the stone’s color consistency rather than individual shapes.
Raked Joints and Architectural Definition
Raked joints involve removing the mortar to a specific depth, creating deep shadows that emphasize the individual contours of the stones. This adds significant visual depth and architectural character to rustic or traditional designs. In 2026 builds, architects must carefully consider exterior applications of raked joints due to potential water pooling on exposed stone ledges. This style effectively highlights the unique shapes and natural split faces of the stone material, creating a high-contrast look that defines each piece within the wall.
| Grout Style | Aesthetic Profile | Weather Performance |
|---|---|---|
| Flush Joint | Modern, Monolithic, Seamless | Highest (Prevents water pooling) |
| Raked Joint | High-Shadow, Rustic, Defined | Moderate (Ledges can hold moisture) |
| Overgrout | Aged, Old-World, Heritage | High (Protects stone edges) |
Overgrout Finishes for Heritage Character
The overgrout or “bag-rubbed” style delivers an aged appearance by allowing mortar to partially cover the stone edges. This technique creates a rustic, hand-crafted aesthetic that remains popular for residential fireplaces and estate-style exteriors. Beyond the visual appeal, overgrouting protects the edges of natural stone from minor chipping while creating a unified color palette. It provides a low-maintenance solution for projects seeking a historical or farmhouse design language, softening the sharp edges of individual stones into a cohesive surface.
Climate Exposure and Performance Selection
Selecting a grout style requires balancing design goals with the specific environmental demands of the project site. Technical specifications for 2026 stone installations emphasize the following considerations:
- Installers prioritize flush joints in high-moisture regions to prevent freeze-thaw damage within the joint.
- Selection depends on weatherproofing standards to ensure long-term moisture management behind the stone.
- Regional traffic patterns and maintenance capabilities influence the choice between recessed and surface-level grout.
- High-density quartzite materials offer superior resistance to staining when using overgrout techniques compared to porous alternatives.
Impact on Labor Time and Project Cost
Structural substrate requirements and specialized masonry hours dictate the final budget more than the raw material cost of the stone itself.
Labor Efficiency of Individually Sawn-Back Stones
Labor efficiency in 2026 hinges on reducing the “chipping and fitting” time traditionally associated with masonry. While many developers look at pre-assembled panels to save time, professional-grade thin stone veneer utilizes a 100% sawn-back finish to achieve similar speed with superior visual results. These stones provide a flat bonding surface that ensures maximum adhesion and a faster set time. By eliminating the need to level individual stones against the substrate, contractors report on-site labor savings of up to 30% compared to traditional, irregular loose stone.
The bespoke random-lay pattern created by loose stone allows masons to adjust for site-specific nuances without being locked into the repetitive “stair-step” patterns of interlocking systems. This flexibility is critical for meeting tight construction schedules where infrared-cut precision at the factory level replaces the need for time-consuming on-site trimming.
Cost Implications of Manual Dry Stack Precision
Achieving a seamless dry stack look requires meticulous stone positioning, which places it at the higher end of the labor spectrum. Skilled masons typically charge between $40 and $80 per hour for dry-laid applications because the stability of the wall depends on the precise interlocking of stones rather than the adhesive strength of a grout joint. While the labor hours increase, the project budget is often stabilized by the reduction in waste; precision-fit stones minimize the discard pile, ensuring that the square footage purchased is the square footage installed.
| Installation Format | Avg. Labor (Sq Ft / Hour) | Structural Footing Required? |
|---|---|---|
| Sawn-Back Thin Veneer | 10 – 15 Sq Ft | No (Weight: 65kg/m²) |
| Traditional Dry Stack | 4 – 7 Sq Ft | Yes (Full Bed Depth) |
| Grouted Loose Stone | 8 – 12 Sq Ft | No (Veneer Thickness) |
Foundation Savings via Lightweight Stone Selection
The thickness of the stone directly dictates the structural engineering costs of the project. Traditional stone blocks require massive concrete footings and wall ties, adding thousands to the preparation phase. By selecting high-density quartzite or granite thin veneers with a thickness of 25–40mm, builders can apply the stone directly to structurally sound surfaces like cement board or concrete. This lightweight advantage removes the requirement for structural ledges, simplifying the substrate preparation and drastically reducing the total material spend.
Project Timelines for Grouted vs. Seamless Styles
Choosing between a grout joint and a seamless dry stack finish dictates the final phase of the installation timeline. Standard mortar joints are often faster to install because they allow for greater tolerance in stone sizing; the grout fills the gaps, so the mason spends less time on precision alignment. Furthermore, grout joints typically cover 10-15% of the wall surface, which can actually reduce the total volume of stone material needed to finish the area.
However, seamless styles bypass the grouting and cleaning stages entirely. Once the stone is set on the wall, the project is effectively finished. For interior feature walls or areas where clean-up must be minimized, the seamless approach allows for immediate site turnover, which is a major advantage for commercial projects with rigid move-in dates.
Which style is better for exterior weatherproofing?
In high-exposure exterior environments, a grouted stone system provides a necessary physical seal against moisture, whereas dry-stack installations rely entirely on the performance of the secondary drainage plane behind the veneer.
Grouted Systems for Superior Moisture Protection
Mortared or grouted stone joints function as the primary defense against environmental elements. By physically filling the gaps between individual stones with Type S mortar, we create a unified surface that blocks wind-driven rain and prevents water from infiltrating the wall cavity. This sealed joint system is vital for 2026 commercial and residential projects in regions with high precipitation.
| Performance Metric | Grouted Joint System | Dry-Stack (Loose Stone) |
|---|---|---|
| Moisture Barrier | Primary defense; blocks 90%+ of surface water. | Permeable; relies 100% on rear drainage plane. |
| Freeze-Thaw Resilience | High; prevents water from pooling behind stones. | Moderate; requires expert drainage to avoid ice jacking. |
| Maintenance Needs | Minimal; sealed joints prevent insect nesting. | Higher; requires debris removal from gaps. |
Applying mortar reduces the risk of freeze-thaw damage. In cold climates, water that seeps into open joints can pool and expand as it freezes, potentially popping stones off the substrate. A grouted system eliminates these voids, ensuring the structural integrity of the thin stone veneer over decades of exposure.
Vulnerabilities of Dry-Stack in Exterior Environments
Dry-stack installations prioritize a seamless, contemporary aesthetic but lack the chemical bond and physical barrier of a mortared joint. The natural spacing between dry-stacked stones allows moisture to penetrate the system easily. While we provide 100% sawn-back stones for a tight fit, these gaps can still serve as entry points for insects, dust, and wind-driven debris.
- Thermal fluctuations can cause individual stones to shift slightly without mortar to lock them in place.
- Open joints require a more robust and expensive secondary waterproofing system behind the stone.
- Power washing dry-stack walls can erode the fine sand or setting bed used during installation.

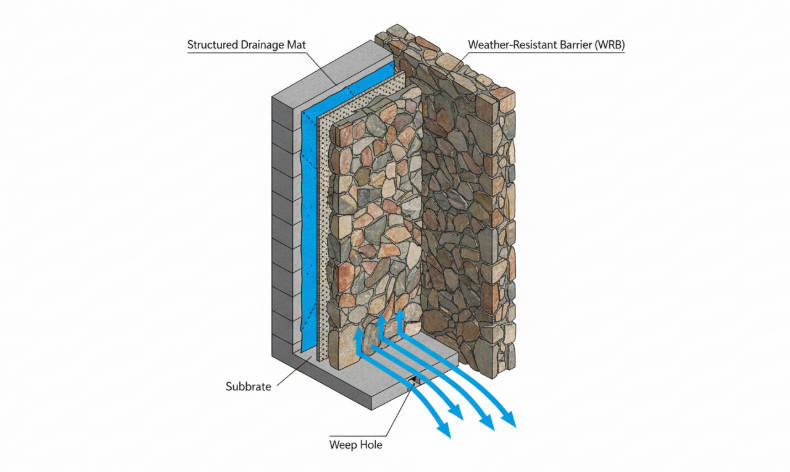

Essential Waterproofing Layers and Sealing Requirements
Every exterior stone project requires a comprehensive drainage strategy regardless of the joint style. We recommend installing a dedicated weather-resistive barrier (WRB) and a structured drainage mat behind all thin stone veneers. This setup ensures that any moisture bypassing the stone surface exits the wall system efficiently rather than soaking into the substrate.
High-density quartzite and granite veneers offer natural resistance to water absorption, but applying a breathable sealer is still a best practice. This prevents staining and limits water saturation within the mineral structure. Proper flashing at the base of the wall and around openings completes the weatherproofing envelope, protecting the building’s core for the long term.
Conclusion
Choosing between dry stack and mortared joints defines the architectural character and long-term durability of a stone feature. Proper installation technique, combined with the use of individually sawn-back stones, balances visual authenticity with efficient on-site labor. This decision affects everything from moisture management to the specific textural depth of the finished masonry wall.
Request our technical specifications or a stone veneer catalog to see how various profiles perform with different grout finishes. Our team assists wholesalers and architects in selecting the right materials for high-volume commercial and residential developments.
Frequently Asked Questions
What is the difference between dry stack and mortared stone?
The primary difference lies in the aesthetic and the visibility of the binding material. Dry stack stone is installed with tight-fit joints, creating a seamless, contemporary look where the stones appear to be stacked without mortar. Mortared stone (or grouted stone) features visible joints between the stones, which helps frame individual pieces and provides a more traditional or “old-world” rustic appearance.
Is dry stack stone more expensive to install?
Generally, yes. While dry stack saves on the cost of grout material, the labor is significantly more intensive. Installers must meticulously hand-cut, trim, and fit each stone to ensure a “tight-fit” appearance with minimal gaps. This precision work typically commands a higher per-square-foot labor rate compared to standard grouted installations where mortar joints can mask slight irregularities in stone size.
Does dry stack leak water?
Dry stack veneer does allow more water to penetrate through the gaps between stones than a fully grouted surface. However, this is not a “leak” in a structural sense if the wall is built to code. Professional installations utilize a weather-resistant barrier (WRB), a drainage plane, and weep holes behind the stone to ensure that any moisture that enters is safely channeled down and away from the structure.
How to grout stone veneer?
Grouting is best achieved using a grout bag to inject mortar into the joints between the stones. Once the mortar becomes “thumbprint hard” (firm but pliable), use a metal striking tool or a wooden stick to rake the joints to the desired depth. Finally, use a medium-stiff brush to clean away excess mortar and smooth the joint texture, being careful not to smear wet mortar onto the face of the stone.
What is overgrouting?
Overgrouting is a stylistic masonry technique—often called a “Sack Rub” or “German Smear”—where mortar is applied so that it partially covers the edges and faces of the stones. This intentionally “messy” application mimics the appearance of centuries-old European cottages, softening the lines of the masonry and creating a heavily textured, historic look.
Best stone for a dry stack look?
Ledgestone is the most popular choice for achieving a dry stack look due to its linear profile and flat bedding planes. Other excellent options include stacked stone panels or thin-cut fieldstones that have been sawn-back or squared to allow for the tight, mortarless appearance required for modern architectural styles.
